Satellite Service For Premium Radio- US and Canada Only

RXA0100813
RXA0100813-UN-06MAY09

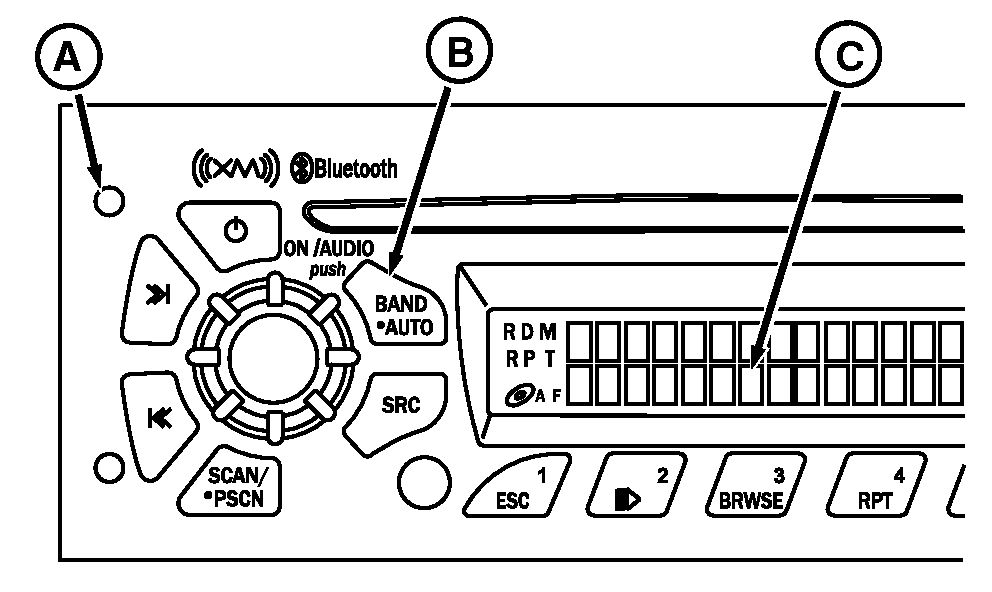

Radio With CD Player

A - SAT Radio

B - Band Button

C - Display

When the XM® logo (A) appears above Audio Knob on radio, it is satellite radio compatible. XM satellite radio services offer more than 100 channels of digital quality audio programming which can be heard uninterrupted across the United States and Canada.

A service fee is required to receive satellite broadcasts. For more information, contact XM at www.xmradio.com or by phone at 1-800-852-XMXM (9696) .

To activate integrated or external satellite radio:,

Furnish satellite radio provider with the satellite radio’s Electronic Serial Number. To find the electronic serial number complete the instructions that follow.

If satellite radio provider is XM Satellite Radio:

  • 1. With ignition and radio ON, press BAND button (B) and select XM1, XM2, or XM3.
  • 2. Tune radio to channel 0 and the 8-digit serial number will appear on display (C).

XM is a trademark of SIRIUS XM Radio Inc.

OURX935,0000AF0-19-20090904
