External Hitch Raise/Lower Switches
RXA0097037-UN-19MAR09

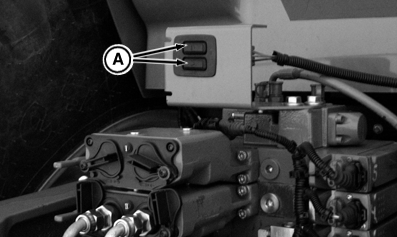

SCV Stack Mounted External Raise/Lower Rear Hitch Switches
A - SCV Stack Mounted External Raise/Lower Rear Hitch Switches
Tractors without fender extensions have external switches (A) mounted on the valve stack.Tractors with fender extensions have optional raise switch (A) and lower switch (B) on rear fenders.
RXA0104742-UN-23SEP09

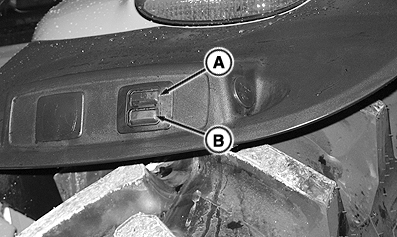

Fender Mounted Rear Hitch Raise/Lower Switches
RXA0098833-UN-05AUG08

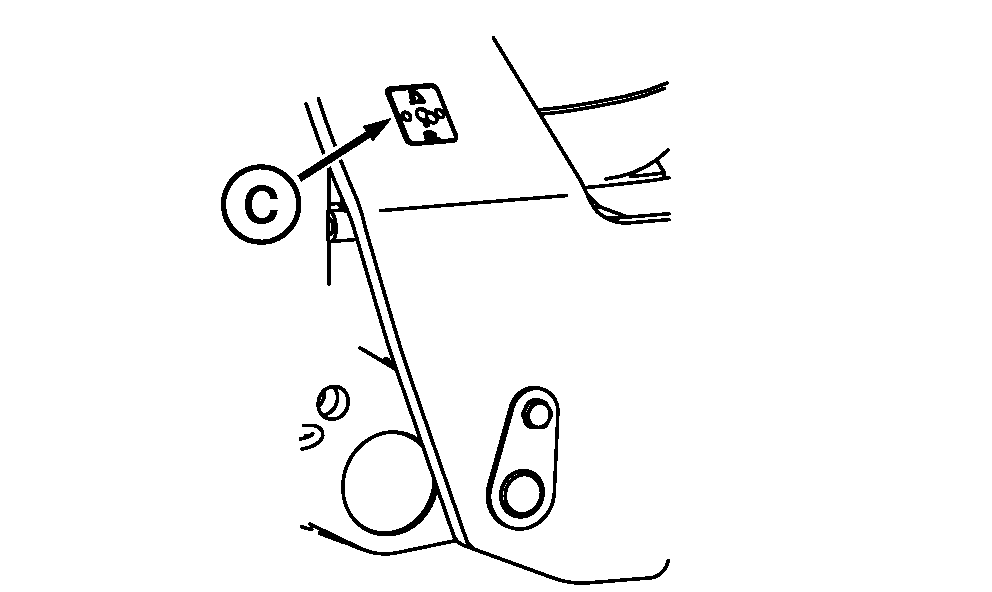

Front Hitch Switch
A - Raise Switch
B - Lower Switch
C - Front Hitch Switch
Tractors with optional front hitch have front hitch mounted front external raise/lower switch (C).
|
OURX935,0000B15-19-20090923 |
