Adjusting Implement Level

RXA0098642-UN-16JUL08

A - Locking Ring

B - Handle

C - Center Link Adjustment Length

1. Adjust center link to level implement front-to-rear.

   • Remove Locking Ring (A).
   • Lift Handle (B).
   • Rotate center portion of center link to desired position.



2. Secure handle with locking ring.

3. Check distance between the center of pins which is the center link adjustment length (C).

   Item	Measurement	Specification
   Center Link Adjustment Length
   Adjustment	Category 3 Length With Quick Coupler	627—790 mm (24.7—31.1 in.)

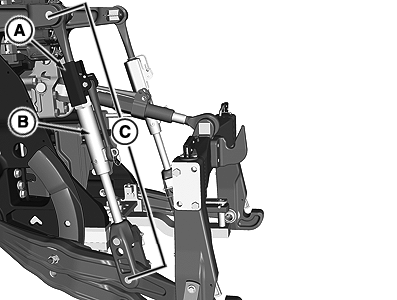

4. Adjust lift links to level implement side-to-side. Slide collar (A) upward. Rotate center portion (B) of lift link to desired position.


   RXA0098643-UN-16JUL08

   A - Collar

   B - Center Portion

   C - Lift Link Adjustment Length

   Item	Measurement	Specification
   Lift Link Adjustment Length
   Adjustment	Category 3 Length (With or Without Quick Coupler)	966—1135 mm (38.— 44.7 in.)

---




5. Check distance between the center of pins which is the lift link adjustment length (C).

6. Lock out lateral float.

7. Secure collar in position.
