Converting Category 3/4 Convertible Quick Coupler Upper Hook

CAUTION: Use proper lifting device when converting coupler. Failure to do so can result in personal injury.

NOTE: A second person is recommended to align components during conversion.

When full power is to be used on 8320R and 8345R tractors with ground engaging implements it is recommended to use CAT 4 upper hook if implement set up allows. The CAT 3 upper hook may be overloaded with very high draft loads.

1. Support quick coupler frame (A).


   RXA0087383-UN-02MAR06

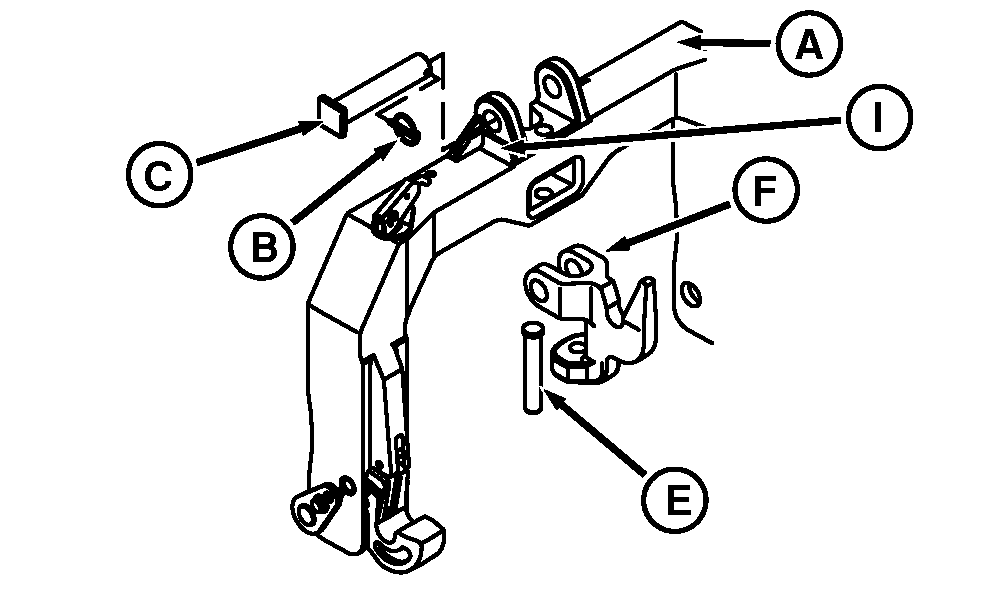

   Coupler


   RXA0081100-UN-02JUN05

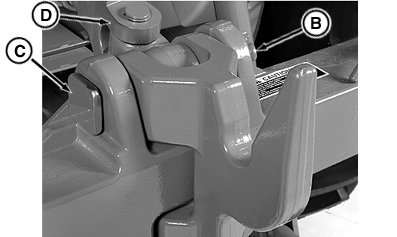

   Center Link


   RXA0081101-UN-09AUG05

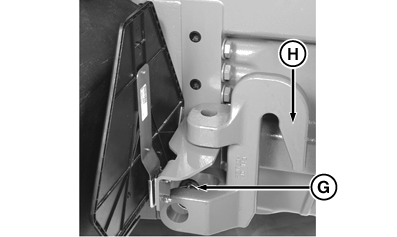

   Stored Upper Hook

   A - Quick Coupler Frame

   B - Quick Lock Pin

   C - Pin

   D - Center Link

   E - Pin

   F - Upper Hook

   G - Pin

   H - Stored Upper Hook

   I - Shoulder

---




2. Remove quick lock pin (B) and pin (C) to release center link (D).

3. Remove pin (E) and upper hook (F).

4. Remove pin (G) to remove stored upper hook (H) and replace with upper hook previously removed from quick coupler.

   NOTE: Pin (C) must be installed left to right. Shoulder (I) will keep retaining pin (B) from being installed if pin (C) is installed incorrectly.

5. Use reverse sequence of steps to remove upper hook from quick coupler. Install previously stored upper hook into quick coupler.

   NOTE: When implements are mounted on the quick coupler in the raised transport position, cab SMV emblem is not visible from behind. A second SMV emblem must be mounted on the quick coupler mounting bracket provided and must be used when quick coupler is in raised position or implements are mounted on the quick coupler.

   When not in use, place the second SMV emblem in storage location on the right hand side of transmission.


   RXA0081102-UN-09AUG05

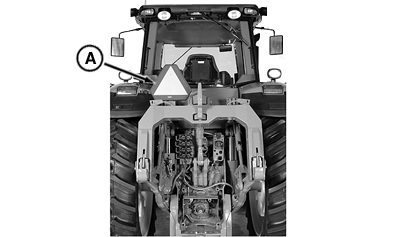

   SMV On Quick Coupler


   RXA0083127-UN-09AUG05

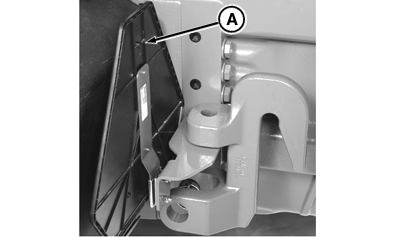

   SMV in Storage Location

---
