Lubricating Two Wheel Drive Front Axle
RXA0056640-UN-31AUG01
RXA0056637-UN-31AUG01
RXA0056638-UN-31AUG01

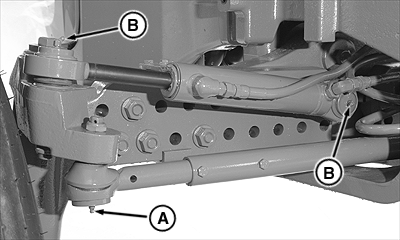

A - Tie Rods
B - Steering Cylinder Ends
C - Steering Spindles
D - Axle Pivot Pin
Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section. In extremely wet conditions service daily or every 10 Hours.Lubricate each fitting on front axle.
|
John Deere is a trademark of Deere & Company |
OURX935,0000B25-19-20090902 |
