Lubricating MFWD U-Joints

RXA0095783
RXA0095783-UN-21AUG07

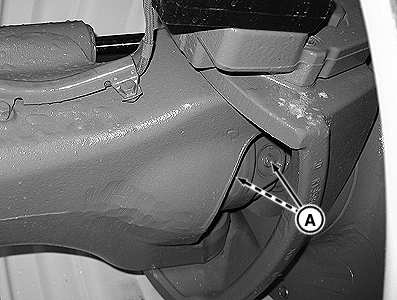

1300 MFWD Axle

RXA0095780
RXA0095780-UN-21AUG07

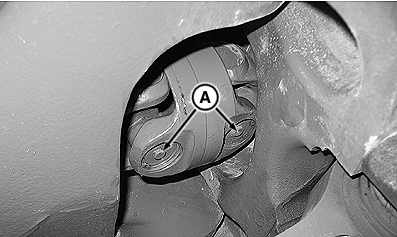

1500 MFWD Axle

A - Plug

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section. In extremely wet conditions service daily or every 10 Hours.

Apply grease to both U-joints, using fitting (A).

Drilled passages in the cross allow grease to reach all four bearings from a single grease fitting.

For normal operations, outboard U-joints are sealed and not equipped with grease fittings. For extremely wet conditions:

  1. Replace plugs (A) with M10 thread 90° grease fittings, part number 58M5580.
  2. Lubricate U-joints.
  3. Replace grease fitting with plug and tighten to torque specification.

    ItemMeasurementSpecification
    PlugTorque0.904 N˙m (8 lb-in)

John Deere is a trademark of Deere & Company

OURX935,0000B28-19-20090902
