Lubricating Independent Link Suspension Axle—External Fittings

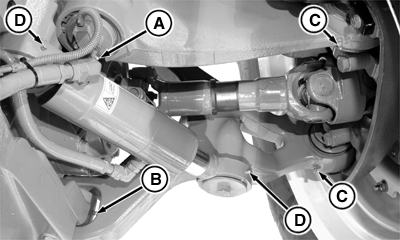

RXA0056573-UN-30AUG01

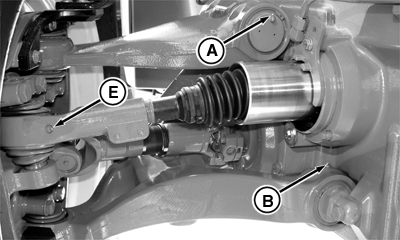

RXA0056575-UN-30AUG01

A - Upper Control Arm Fittings

B - Lower Control Arm Fittings

C - Kingpin Fittings

D - Suspension Cylinder Fittings

E - Tie Rod Fittings

Upper Control Arms—Lubricate fittings (A) on each side of suspension.

Lower Control Arms—Lubricate fittings (B) on each side of suspension.

Kingpins—Lubricate fittings* (C) for each kingpin bearing.

Suspension Cylinders—Lubricate fittings (D) for both ends of each suspension cylinder.

Tie Rods—Lubricate fittings* (E) for each tie rod.

* Daily or 10 Hours in extremely wet conditions or where AutoTrac™ is used
