Checking MFWD Differential Case Oil Level

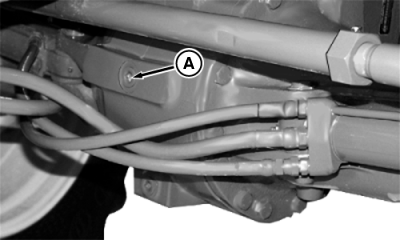

Check differential case oil level. Oil level should be just below plug hole (A). If low, add through same hole.
RXA0052918-UN-17APR01
A - Plug Hole
John Deere™ Hy-Gard™ HY-GARD oil is recommended.
|
John Deere is a trademark of Deere & Company Hy-Gard is a trademark of Deere & Company |
OURX935,0000B2B-19-20090902 |
