Checking MFWD or Independent Link Suspension Wheel Hub Oil Level

Put the tractor on level ground. Turn wheel hubs until the words OIL LEVEL are horizontal.

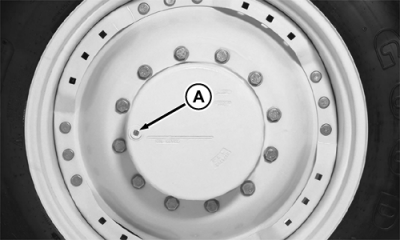

RW26335
RW26335-UN-25JUN99

A - Plug

Remove plug (A). Oil level should be just below plug hole. If low, add oil through same hole.

John Deere™ GL-5 Gear Lubricant is recommended.

John Deere is a trademark of Deere & Company

OURX935,0000B2D-19-20090902
