Inspecting Seat Belts

CAUTION: If seat belt system, including mounting hardware, buckle, belt, or retractor shows any sign of damage such as cuts, fraying, extreme or unusual wear, discoloration or abrasion, the entire seat belt system should be replaced immediately. Replace belt system only with replacement parts approved for your machine.

TS205-UN-23AUG88

RXA0062690-UN-20SEP02

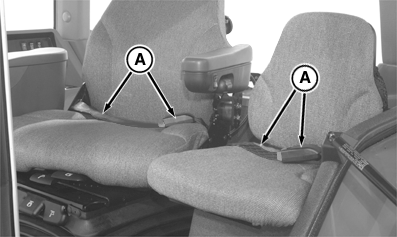

A - Seat Belts

Inspect seat belts (A) and mounting hardware. If seat belts need to be replaced, see your John Deere™ dealer.
