Lubricating Draft Link Support Shaft Bushing

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section.

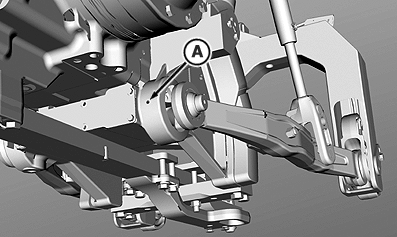

RXA0078654-UN-21JAN05

A - Support Shaft Bushing

Apply one or two shots of grease to support shaft bushing (A).
