Adjusting CommandARM™Position

1. Loosen Fore/Aft Knob (A) and slide forward or rearward to desired position.

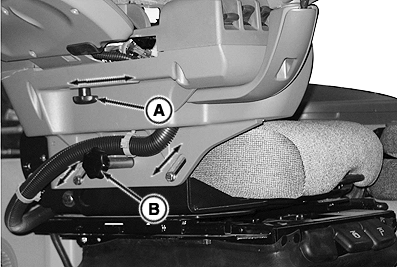

   RXA0100925-UN-06MAR09

   Right-Hand Side Shown

   A - Fore/Aft Knob

   B - Raise/Lower Knob

---




2. Loosen CommandARM Raise/Lower Knob (B) to desired height position.

3. Hand tighten knobs after making desired adjustment.
