Road and Field Light Identification and CommandCenter™Indicators

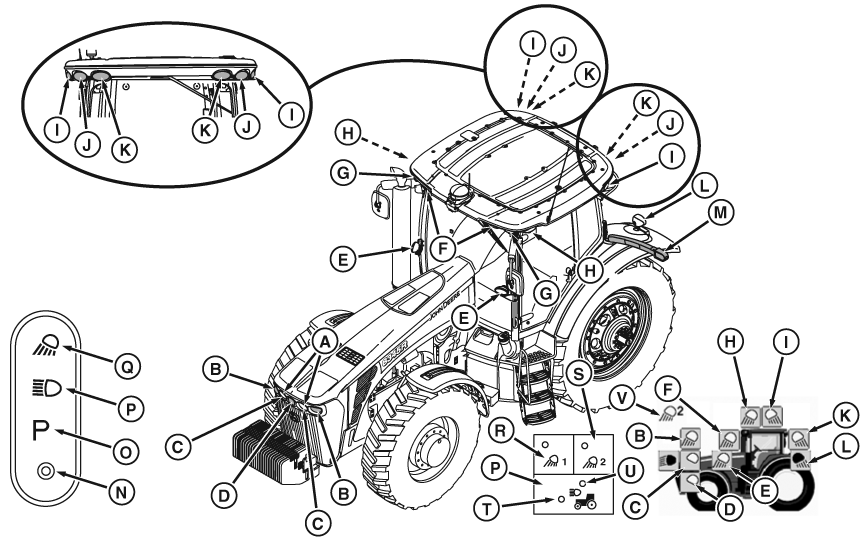

RXA0099321-UN-20MAR09

A - Head Lights

B - Front Outer

C - Front Optional Spot Light

D - Indicator Field Light Position

E - Mid Body Flood

F - Front Inner Roof Optional Flood

G - Front Outer Roof (Amber Warning Light)

H - Front Side Roof Flood

I - Rear Side Roof Flood

J - Rear outer Roof (Amber Warning Light)

K - Rear Inner Roof

L - Rear Fender Flood

M - Extremity Transport Lights

N - Light , OFF Position

O - Lights, Park Position

P - Road Lights (Steering Wheel and CommandArm Controls)

Q - Field Lights

R - Field Lights 1 (CommandArm Controls)

S - Field Lights 2 (CommandArm Controls)

T - Hood Light Indicator (CommandArm Controls)

U - Loader Light Indicator (CommandArm Controls

V - Indicator, Field Light Position

CAUTION: Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles. Avoid using Field Lights which could blind or confuse other drivers.

Standard Lighting has four positions (N—Q) and operates regardless of key position.

0 (OFF) Position (N):

Turns all lights off.

NOTE: Refer to Programming Field Lights for lighting set-up information. Programmable lighting display is at the lower right-hand corner of the previous picture. Programmable lights are A, B, C, D, E, F, H, I, K, and L.

Park Lights Position (O:

Turns on red tail lights lenses.

Road Position (P):

Selected by turning knob on upper right steering column and observed at CommandARM™ Controls lower right side.

Turns on high/low beam Head Lights (A), red tail lights, flashing front (G) and rear roof hazard lights (J) and extremity transport lights (M).

If tractor is equipped with loader lights, pressing CommandArm Controls Road Position Button (P) allows lights to be toggled between hood light indicator (T) and loader light indicator (U). If tractor is not equipped with loader lights, only light indicator (T) will be on when hood lights are on.

Field Position (Q) :

Selected by turning knob on upper right steering column and observed at CommandArm Controls lower right side.

Turns on clear-lens lighting (B, C, E, F, H, I, K and L) programmed for either field position 1 (R) or field position 2 (S).

CommandArm Controls indictor lights (T or U) will be only to indicate the status of hood lights or loader lights if equipped.

Automatic Battery Protection Feature

To prevent battery discharge if headlights or field lights are left on accidentally after shutting off engine. Electrical system will automatically start the following sequence:

• After 30 minutes have elapsed, lights will turn on and off 5 times
• After 5th time, lights will turn back on and stay lit for about 60 seconds
• After 60 seconds, lights will go off and stay off to prevent complete battery discharge
