Installing Business Band Radio and Antenna

RXA0099991-UN-12DEC08

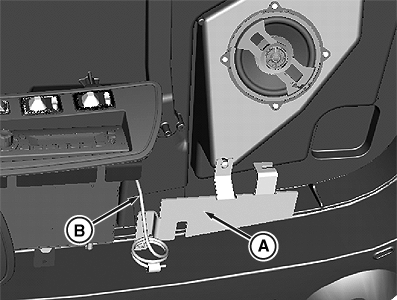

Business Band Radio Bracket With Antenna Cable Shown —. Headliner Removed To Show Location

A - Bracket

B - Antenna Coaxial Cable

CAUTION: Under no circumstances should business band radio antenna be mounted to rear of cab or antenna cable be routed near harness for electrical system controllers or operator controls. Failure to follow these precautions could expose operator to radio frequency energy levels higher than recommended by American National Standards Institute (ANSI) and/or could cause undesirable performance of electronically controlled systems.

CAUTION: Prevent possible personal injury. Disconnect battery ground cable before any electrical repair.

NOTE: Only tractors equipped with Business Band Radio Mounting and Wiring Option from factory have mounting plate and antenna cable included behind the headliner. See John Deere™ dealer for Business Band Radio and Antenna Installation Instructions.
