Testing Coolant

1. CAUTION: Explosive release of fluids from pressurized cooling system can cause serious burns.

   Shut off engine. Only remove cap when cool enough to touch with bare hands. Slowly loosen cap to first stop to relieve pressure before removing completely.


   TS281-UN-15APR13

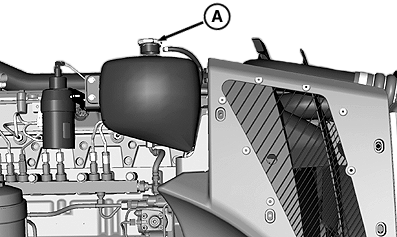

   RXA0078826-UN-04FEB05

   A - De-aeration Tank Cap

   Raise hood.

---




2. Slowly turn de-aeration tank cap (A) to relieve pressure. Remove cap.

   NOTE: De-aeration tank will not be full of coolant when cap is removed. When inspecting tank, if it is at least half full, do not add additional coolant.

3. Test coolant using TY26605 COOL-GARD™II 3-way test strips available from your John Deere™ dealer.

4. NOTE: Follow instructions on back of reader card in test strip pack when testing coolant.

   Add TY26603 COOL-GARD II Coolant Extender available from your John Deere dealer as indicated by the color matrix on reader card in test strip pack. If tank is too full, drain a small amount of coolant from system before extender is added.

   NOTE: Cap gasket should be visually checked for sealing effectiveness. A good functioning gasket should have the imprint of the mating surface with no apparent scratches or leak paths.

5. Install de-aeration tank cap and lower hood.
