Identify Zinc-Flake Coated Fasteners

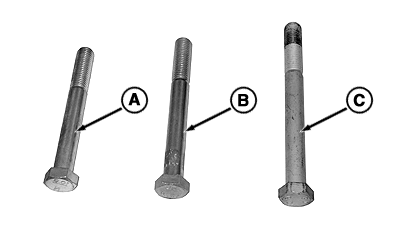

Standard cap screws (A) are a reflective silver color.

Zinc plated cap screws (B) are a reflective gold color.

Zinc-Flake Coated cap screws (C) are a dull silver color.

NOTE: Zinc-Flake Coated fasteners are tightened to lubricated specifications, unless otherwise noted. (See Torque Value Charts in this group.)

A-Standard Cap Screws
B-Zinc-plated Cap Screw
C-Zinc-Flake Cap Screw (16 mm and larger)

BB92646,0000119 -19-17JAN06-1/1
