IMS Functions-Selective Control Valves

NOTE: Learn mode requires SCV control (A) to be in detent position .

Flow Rate and Timed Detent will not be learned and can be changed at any time. Timed detent is used to cancel SCV functions.

IMS can learn four functions for SCVs:

  • Extend Detent
  • Retract Detent
  • Float
  • Neutral (Used to cancel Float or Detent operations)

SCV control must be in neutral position during execution of a sequence.

NOTE: SCVs can be operated manually without causing a sequence to abort.

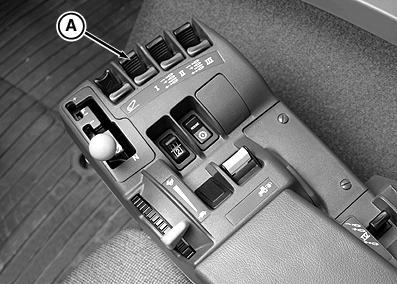

RXA0089442

CommandArm SCV I


A-SCV Control I

OU1092A,00001AC -19-23OCT06-1/1
