Setting Day Backlight, Night Backlight and Screen Contrast

A-Settings Switch
B-Command Dial
C-Select Switch
D-Display
E-Day/Night Backlight Adjust Display
F-Contrast Adjust Display

Press Settings Switch (A) to view menu items on Display (D). Rotate Command Dial (B) to scroll through menu items. Press Select Switch (C) when desired item is highlighted.

Menu Items on Display (D)

English Translation (if applies) Day Backlight Day Backlight Night Backlight Night Backlight Contrast Adjust Contrast Adjust

Using Command Dial, raise or lower setting to achieve desired screen appearance and press Select Switch.

Setting	Range
Day Backlight	0 (Dim)-10 (Bright)
Night Backlight	0 (Dim)-10 (Bright)
Contrast Adjust	0 (Min.)-12 (Max.)

Day Backlight (E): Used to adjust brightness of CommandCenter and corner post displays, when light switch is off.

Night Backlight (E): Used to adjust brightness of CommandCenter, corner post displays and switches, when light switch is on.

Contrast Adjust (F): Used to adjust contrast of CommandCenter and corner post displays.

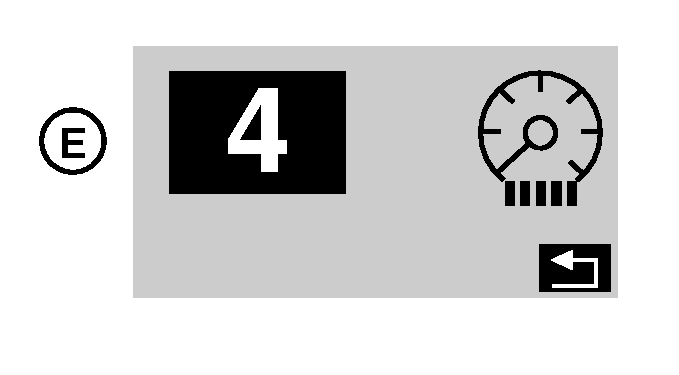

Day/Night Backlight Adjust

RXA0085046

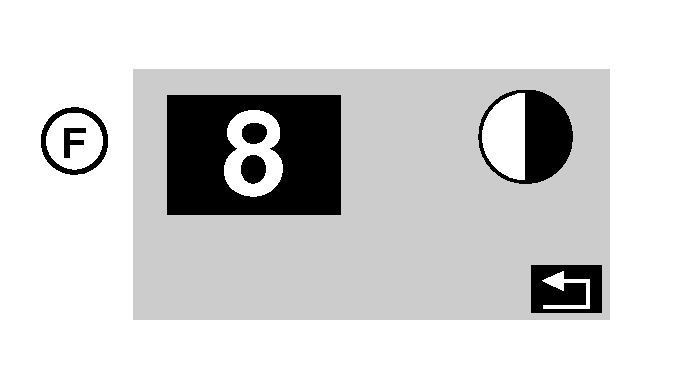

Contrast Adjust
