Category 5 Heavy Duty Drawbar Support Load Limitations-If Equipped

IMPORTANT: Heavy duty drawbar support must be used when maximum static vertical load exceeds 2043 kg (4500 lb).

Maximum Static Vertical Drawbar Load
Short Drawbar Position 4900 kg (11,000 lb)
Long Drawbar Position 4082 kg (9,000 lb)

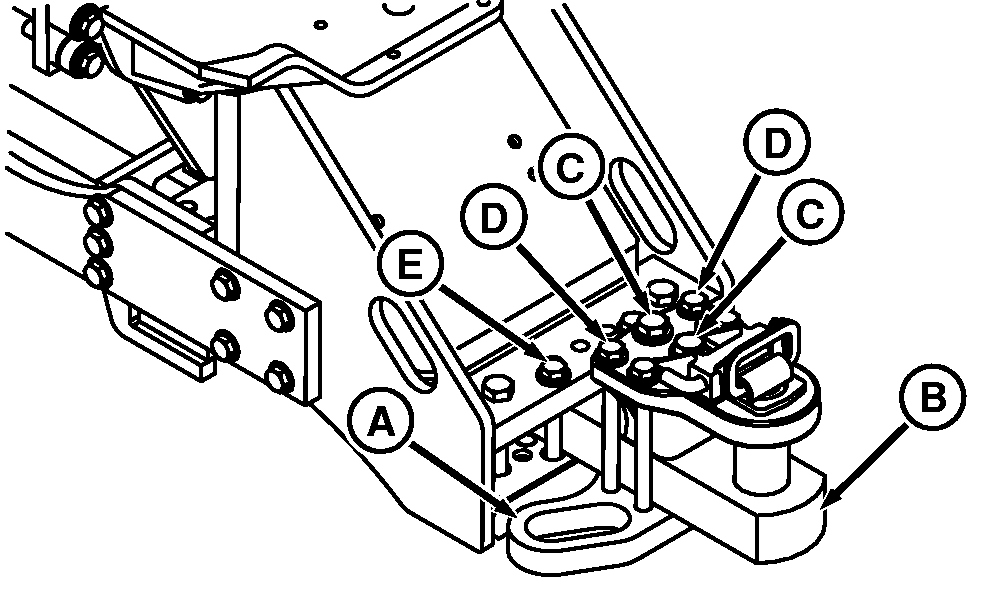

Attach drawbar brace (A) and hammerstrap to drawbar (B) using M22 cap screws (C) and M20 cap screws (D) and (E).

RXA0100004


A-Drawbar Brace
B-Drawbar
C-Cap Screws, M22
D-Cap Screws, M20
E-Cap Screws, M20

Item Measurement Specification
Torque Specifications

M20 Cap Screws

Torque 610 N·m (450 lb-ft)

M22 Cap Screws

Torque 750 N·m (553 lb-ft)

OU1092A,00001C7 -19-12DEC08-1/2

IMPORTANT: Drive slowly when moving heavy draft loads.

IMPORTANT: Clamp plate must be installed when hammerstrap is not used.

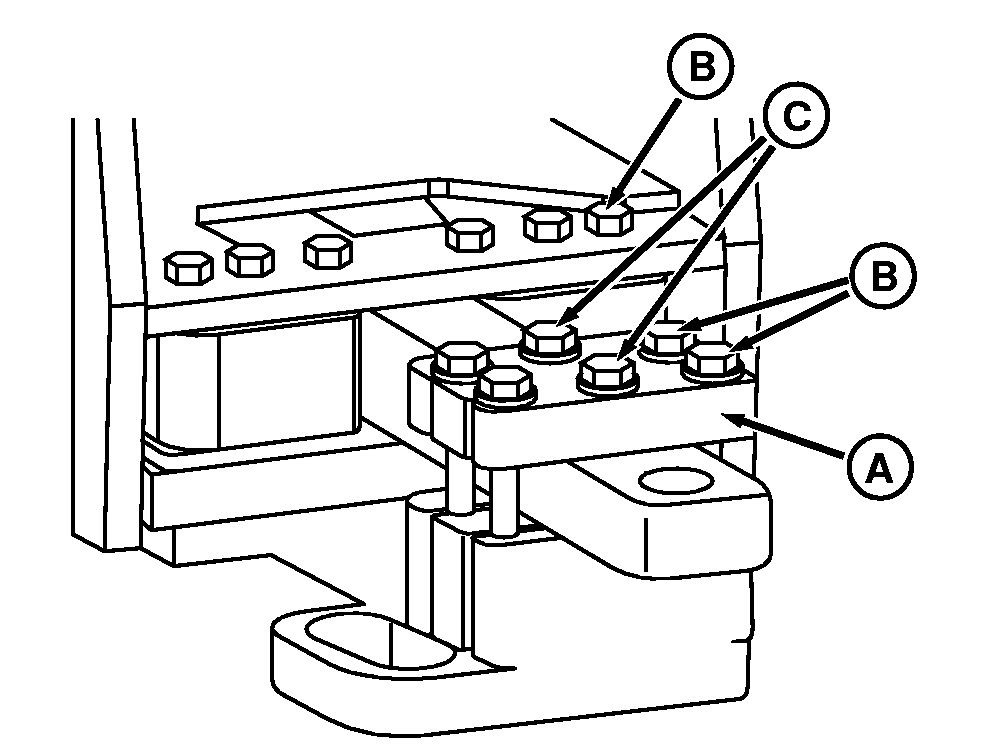

Install clamp pate (A) using cap screw (B) and (C).

RXA0070704


A-Plate
B-Cap Screws, M22
C-Cap Screws, M20

Item Measurement Specification
Torque Specifications

M20 Cap Screws

Torque 610 N·m (450 lb-ft)

M22 Cap Screws

Torque 750 N·m (553 lb-ft)
