Changing Engine Oil and Filter-9330-9430-9530-9630

SERVICE INTERVAL

INITIAL - 100 HOURS
SCHEDULED - 250 HOURS *

* Interval can be extended to 375 hours if PLUS-50 oil and a John Deere filter are used



IMPORTANT: Change engine oil every 125 hours if diesel fuel has a sulfur content greater than 0.50% (5000 ppm).

Refer to Fuel, Lubricants and Coolant section for more information on oil change intervals.

Operate engine to warm oil. Stop engine. Turn crankcase drain fitting (A). Tighten fitting after oil drains out.

NOTE: Oil flow can be controlled by attaching a hose to the drain fitting.

Remove filter (B). Remove old gasket and clean filter mounting surface. Apply a thin film of oil to new gasket and install new filter. Hand-tighten filter. Do not overtighten.

Refill crankcase with seasonal viscosity grade oil. (See Fuels, Lubricants, and Coolant Section.)

Capacities with Filter

9330-9430 ... 42 L (11 gal)
9530-9630... 60 L (15.75 gal)




Start engine and check for leaks.

Stop engine. Recheck oil level.

RXA0090315
RXA0090317

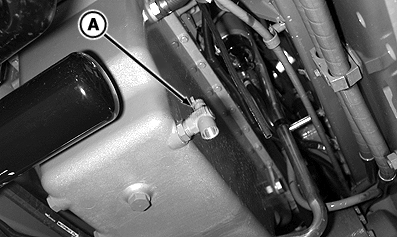

A-Engine Drain Fitting

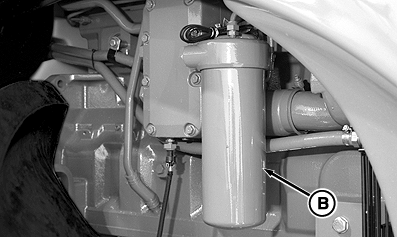

B-Oil Filter

RW29387,0000009 -19-25SEP08-1/1
