Checking Air Intake System

SERVICE INTERVAL - 250 HOURS



IMPORTANT: When tractor is operated with loose air intake clamps which may result in damage to engine.

Check air intake system for loose clamps (A) or cap screws (B) and (C) at service or 250 Hour interval.

Tighten air intake system clamps and cap screws to specification.

Specification

Air Intake Clamps (A) -Torque 8 N·m (70 lb-in.)
Cap Screw (B) -Torque 40 N·m (30 lb-ft.)
Cap Screw (C) -Torque 50 N·m (37 lb-ft.)


A-Clamps
B-Cap Screw
C-Cap Screw

RXA0093461

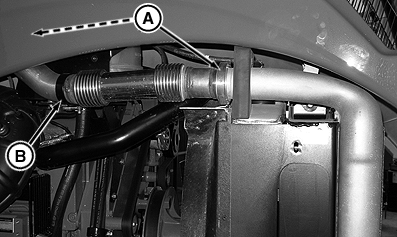

Air Intake System - Left Side

RXA0093463

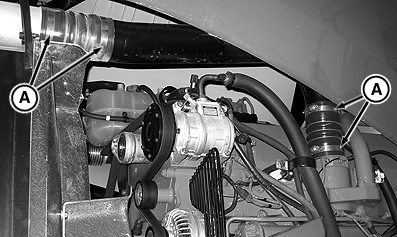

Air Intake System - Right Front Side

RXA0093465

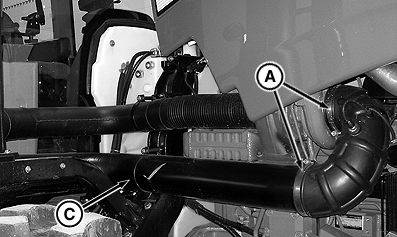

Air Intake System - Right Side

RXA0093467

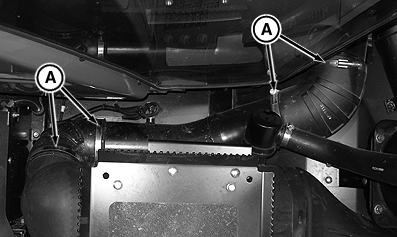

Air Intake System - Right Side

RW29387,000000C -19-09MAY07-1/1
