Replacing Front Grille Flood Light Bulbs-Standard Lighting

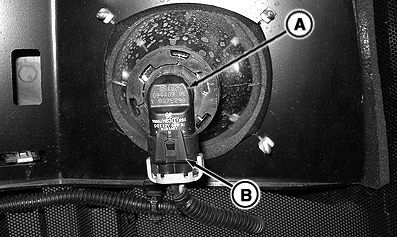

2. Disconnect wiring harness plug (B).

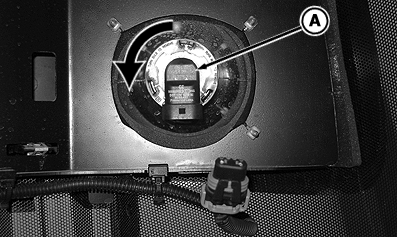

3. Rotate bulb assembly (A) counterclockwise approximately 1/4 turn and remove.

4. Install bulb assembly in reverse order of removal.

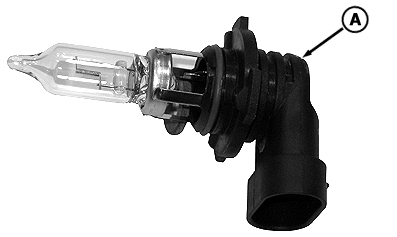

A-Light Bulb Assembly
B-Wiring Harness Plug

RW29387,0000013 -19-17MAY07-1/1
