OMAR283034: 9230, 9330, 9430, 9530 and 9630 Tractors, Block File: RW29387_000004D_19

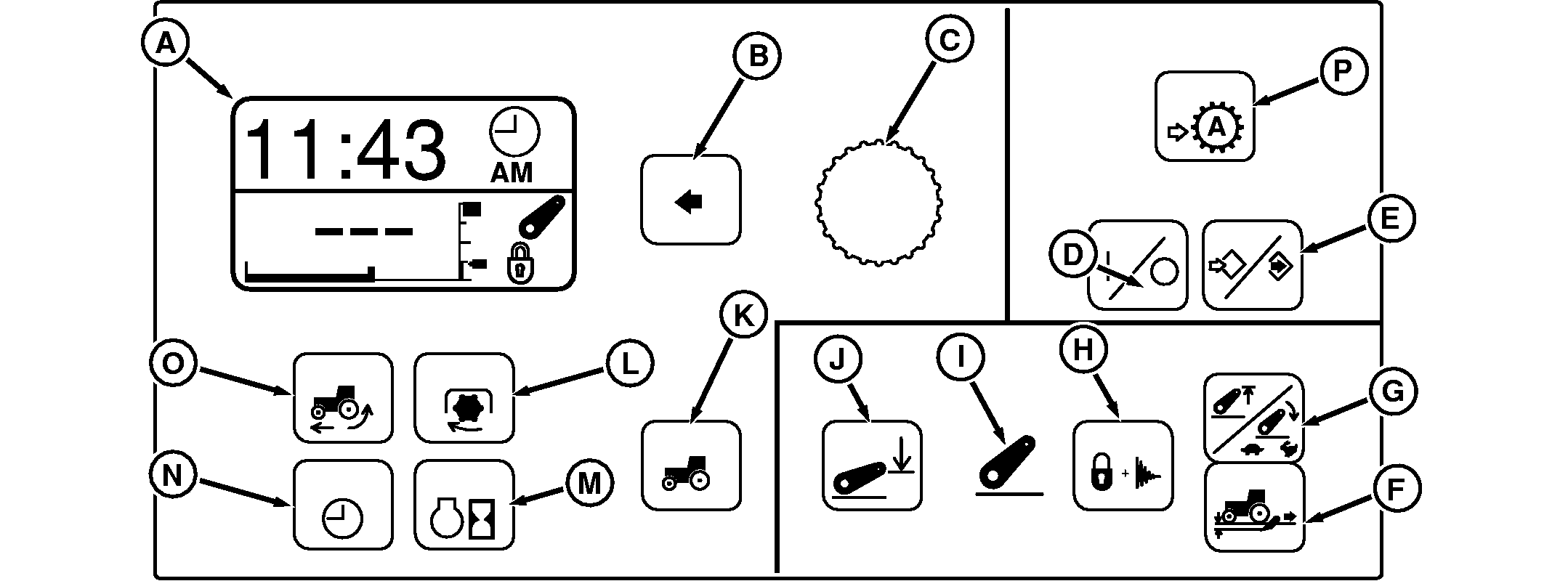

CommandCenter™ Panel

A-Split Screen Display
B-Select Switch
C-Command Dial
D-IMS On/Off Switch
E-IMS Learn/Save Switch

F-Hitch Load/Depth Switch
G-Hitch Height Adjustment/Rate of Drop Switch
H-Hitch Transport Lock and Damping Engage Switch

I-Hitch Icon
J-Depth Set Switch
K-Tractor Settings Switch
L-PTO Speed Switch
M-Engine Hours Switch

N-Clock Switch
O-Percent Slip Switch
P-Automatic Powershift Switch (APS) (PST Only)

The CommandCenter display is the central information system for the tractor providing both text and graphical information. The CommandCenter displays operational performance, settings, diagnostics, and alarm information relevant to the tractor system. In addition,

the CommandCenter allows modification of specific tractor settings such as rear hitch, transmission and PTO control. Control of the display and data input is accomplished through membrane switches and the Command Dial.

RW29387,000004D -19-29SEP06-1/1
