Side Console Load Center

IMPORTANT: Fuse replacement must be the same rating as the original.

See your John Deere Dealer for replacement fuses or relays.

Do not attempt to disassemble master fuse unless instructed by your John Deere dealer. Insure both negative (-) and positive (+) battery connections are disconnected from both batteries prior to fuse inspection or replacement.

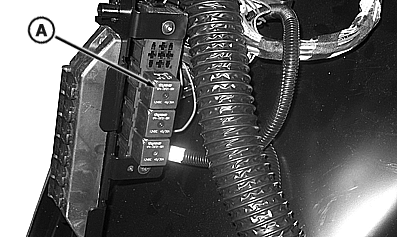

The load center relays (A) can be accessed by removing the side console cover.

A-Side Load Center Relays

RW29387,0000062 -19-31OCT07-1/1
