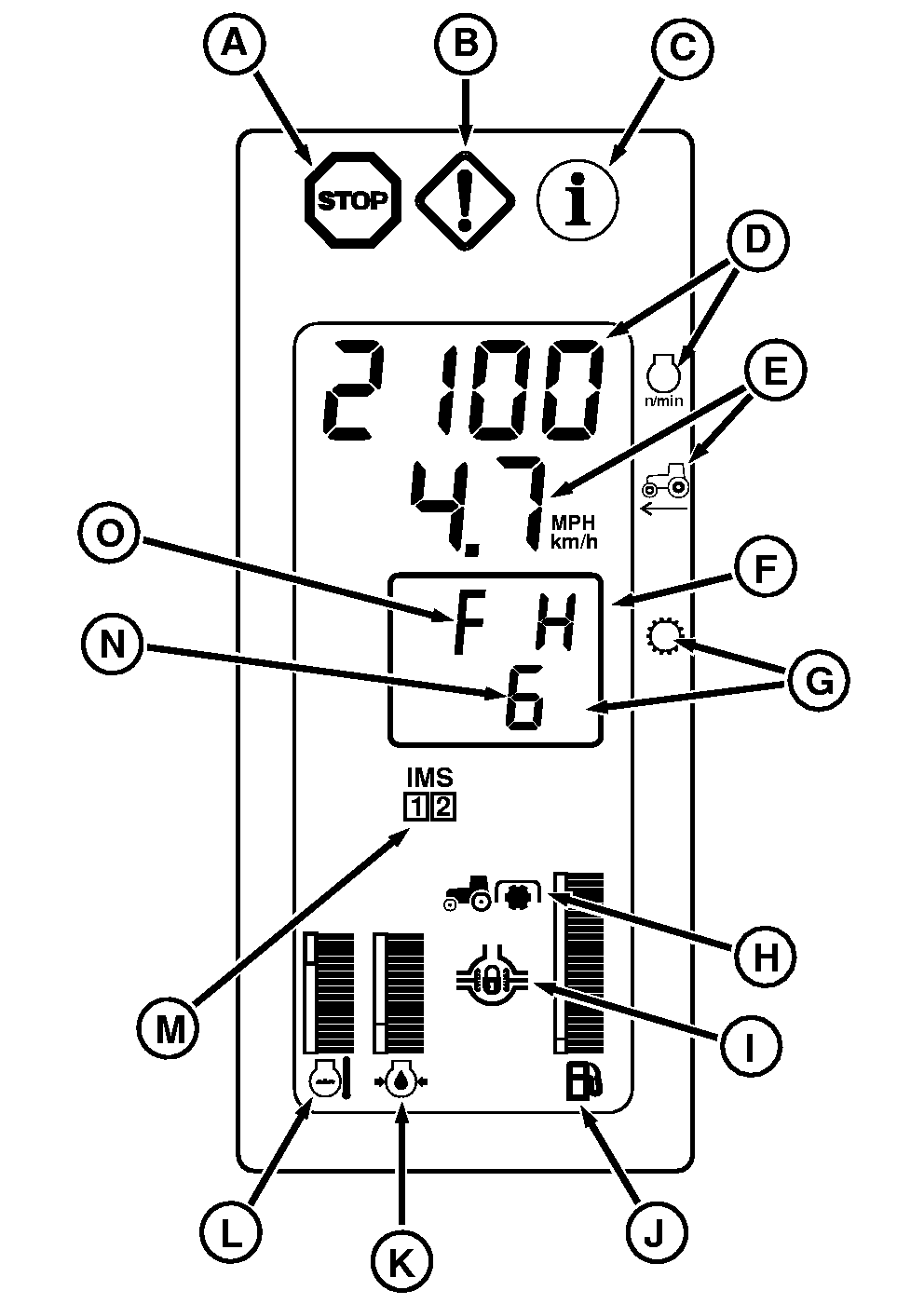

Corner Post Display
NOTE:
Operation indicators (H, I and M) activate when function is engaged.
A-STOP Indicator
B-Service Alert Indicator
C-Information Indicator
D-Tachometer
E-Vehicle Speed
F-Hi-Lo Indicator (MST Only)
G-Transmission Indicator
H-Rear PTO Indicator (If Equipped)
I-Differential Lock Indicator
J-Fuel Level Gauge
K-Engine Oil Pressure Gauge
L-Coolant Temperature Gauge
M-IMS ON/OFF and Sequence Indicators
N-Gear (PST Only)
O-Travel Direction Indicator
|
