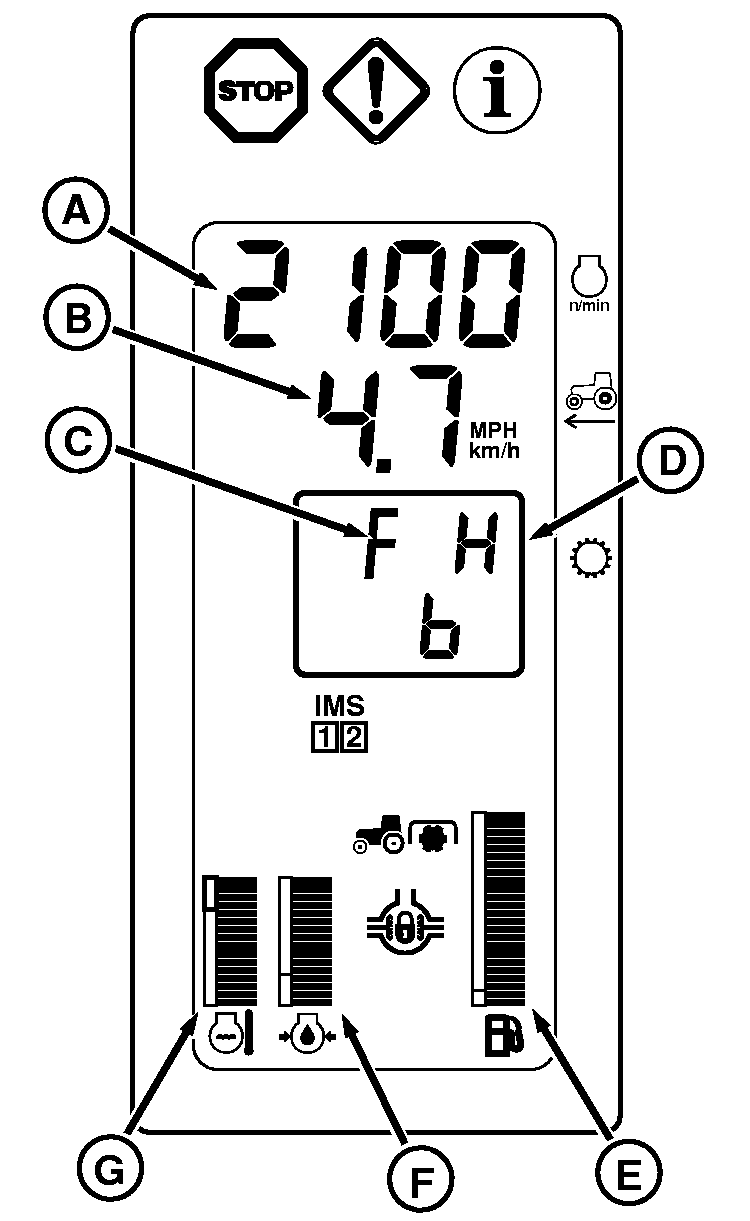

Digital Indicators-Tachometer, Ground Speed, Transmission and GaugesA-Tachometer: Displays engine speed in multiples of 10. If "- - -" is displayed, no speed signal is being received. B-Travel Speed Indicator: Displays travel speed in either miles-per-hour or kilometers-per-hour, depending on operator selected units (U.S. or Metric). If "- - -" is displayed, no speed signal is being received. C-Transmission Information: Shows if transmission is in Neutral-N, Forward-F, Reverse-R or Park-P. If "- - -" is displayed, no gear signal is being received. PST Only: Shows gear selected. D-Hi-Lo Indicator (MST Only): Displays position of Hi-Lo shift lever. E-Fuel Level Gauge: Displays fuel level in tank. Each lighted segment represents 4% of the fuel tank's total capacity or approximately 160 L (42 gal.) of fuel. When fuel tank is full, all segments are lit. When the last segment is lit and low fuel warning light turns on, there is approximately 152-190 L (40-50 gal.) of fuel left in the tank. F-Engine Oil Pressure Gauge: Shows engine oil pressure, between 0.06 - 3.17 bar (1 - 46 psi). All segments are off when oil pressure is extremely low, 0 - 0.06 bar (0 - 1 psi). All segments are lit when pressure is 3.17 bar (46 psi) and above. G-Coolant Temperature Gauge: Shows engine coolant temperature between 40° C - 120° C (104° F-248° F). All segments are off when coolant temperature is below 40° C (104° F). All segments are lit when temperature is 120° C (248° F) and above. |
|
RW29387,000006D -19-05MAY08-1/1 |
