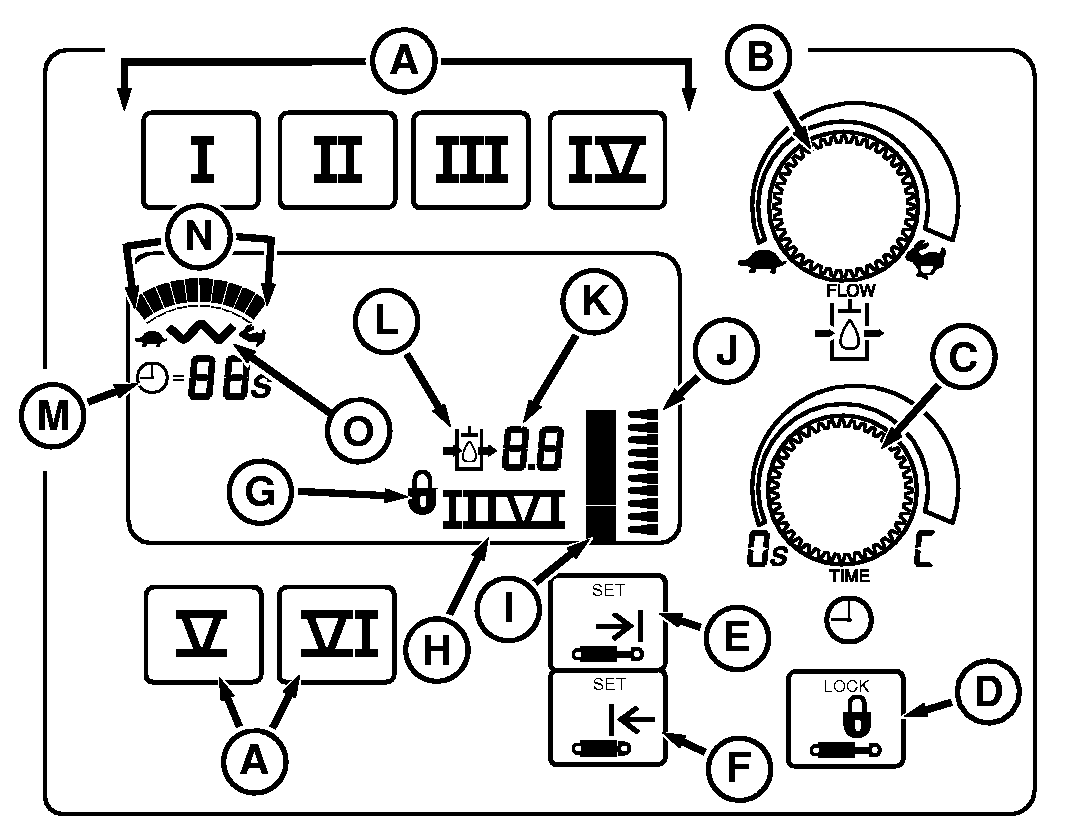

A-SCV Selector Switches1
B-Flow Rate Adjustment Knob
C-Time Adjustment Knob
D-Lock Switch
|
E-Raise Position Set Switch (TouchSet Depth Control)
F-Lower Position Set Switch (TouchSet Depth Control)
G-Lock Indicator
|
H-SCV Indicator
I-Set-Point Indicator (TouchSet Depth Control)
J-Position Pointer Indicator (TouchSet Depth Control)
|
K-Flow Rate Indicator
L-Hydraulic Flow Indicator
M-Time Indicator
N-Flow Indicator
O-Float Indicator
|
