Operating Windshield Wiper and Washer

Rotate knob (A) to activate four wiper positions:

• Off
• Intermittent
• Slow
• Fast

Push knob in to operate optional windshield washer.

Fill washer reservoir (B) with non-freezing windshield washer solvent.

NOTE: Windshield washer nozzles can be adjusted by inserting a small pin into nozzle opening and rotating to desired position.

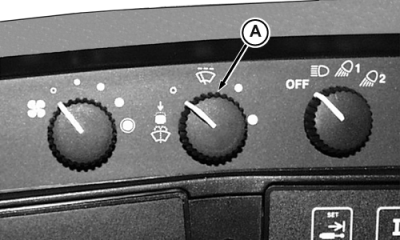

A-Windshield Wiper Knob

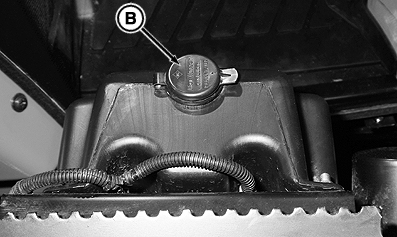

B-Windshield Washer Reservoir

RW29387,000023C -19-05NOV07-1/1
