Using Monitor Mounts

Monitor mounting points are used to connect implement monitors to the cab.

  Mounting Locations

  A-Corner Post Display
  B-Rear Cab Post
  C-Side Console

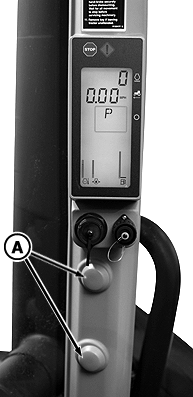

RXA0090652

Corner Post

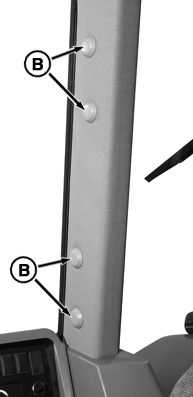

RXA0090654

Rear Cab Post

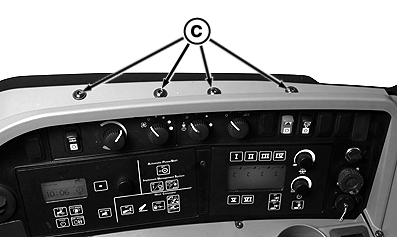

RXA0090650

Side Console

RW29387,0000251 -19-30AUG06-1/1
