Using a Booster Battery or Charger

causym CAUTION: Gas given off by batteries is explosive. Keep sparks and flames away from batteries. Before connecting or disconnecting a battery charger, turn charger OFF. Make last connection and first disconnection at a point away from batteries.

IMPORTANT: Be sure polarity is correct before making connections. Reversed polarity will damage electrical system and can cause battery to explode.

If two or more booster batteries are used, they must be connected in parallel ensuring booster batteries are producing a 12 volt charge.

Avoid possible injury or death from machinery runaway.

Do not start engine by shorting across starter terminals. Machine will start in gear if normal circuitry is bypassed.

NEVER start engine while standing on ground. Start engine only from operator's seat, with transmission in neutral or park.

Booster Battery

1. Attach one end of cable (red) to the remote positive terminal (A) of the starter. Attach the other end of the cable (red) to the positive terminal of booster battery.

2. Attach one end of the second cable (black) to negative terminal of booster battery. Attach the other end of the cable (black) to the battery ground (B) at tractor frame.

3. Remove ground cable (B) first when disconnecting.

TS204

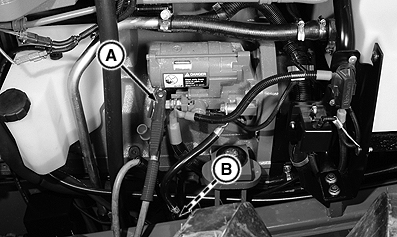

RXA0093323


A-Positive Terminal
B-Negative Terminal

RW29387,000025C -19-03APR07-1/2

Battery Charger

1. Attach positive charger lead to positive remote terminal (A) with charger in OFF position. Attach negative charger lead to negative ground (B) at tractor frame, away from batteries.

2. Switch charger to ON position and charge battery according to charger manufacturers instructions.

3. Switch charger to OFF position. Remove negative charger lead first, then positive lead.


A-Positive Terminal
B-Negative Terminal

RXA0093323

RW29387,000025C -19-03APR07-2/2
