High Flow Hydraulic System Warm-Up

Avoid operating the tractor under load until hydraulic system has warmed up.

Install jumper hose (A) into SCV I coupler.

Shift transmission to PARK position and operate engine at 1500 rpm.

On the TouchSet panel, push SCV I button (B). Turn time control knob (E) clockwise until "C" (continuous) is displayed.

On the CommandARM, place SCV I lever (F) in extend position.

On the TouchSet panel, push SCV II button (C). Rotate time control knob clockwise until "C" (continuous) is displayed.

On the CommandARM, place SCV II lever (G) in extend position.

On the TouchSet panel, select SCV I and turn oil flow rate knob (D) until engine is slightly loaded (approximately 7.0-7.2).

Return SCV I and II controls to neutral position after transmission-hydraulic system has warmed up.

NOTE: Hydraulic oil warm-up temperature of 50°C (122°F) is recommended for continuous use applications, such as air seeders. Check hydraulic oil temperature using CommandCenter bottom half display.

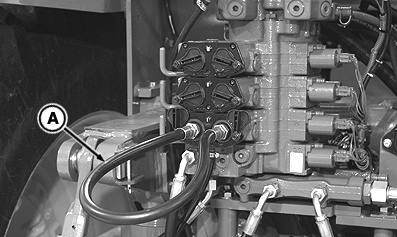

A-Jumper Hose

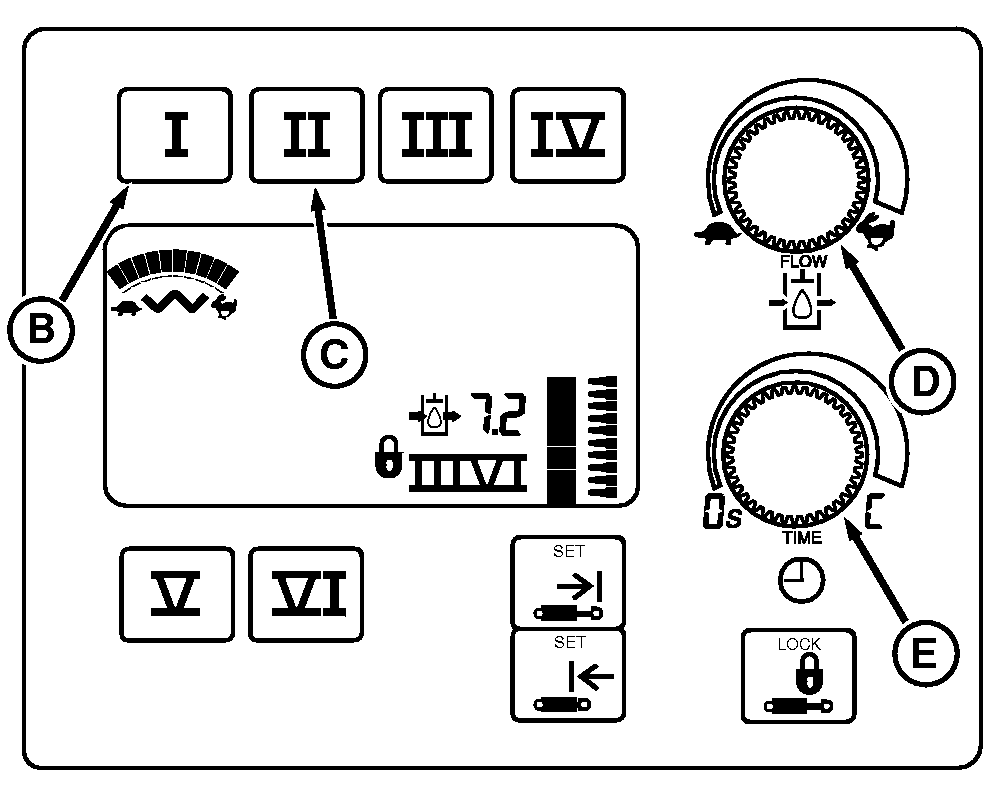

B-SCV I Switch
C-SCV II Switch
D-Oil Flow Rate Knob
E-Time Control Knob

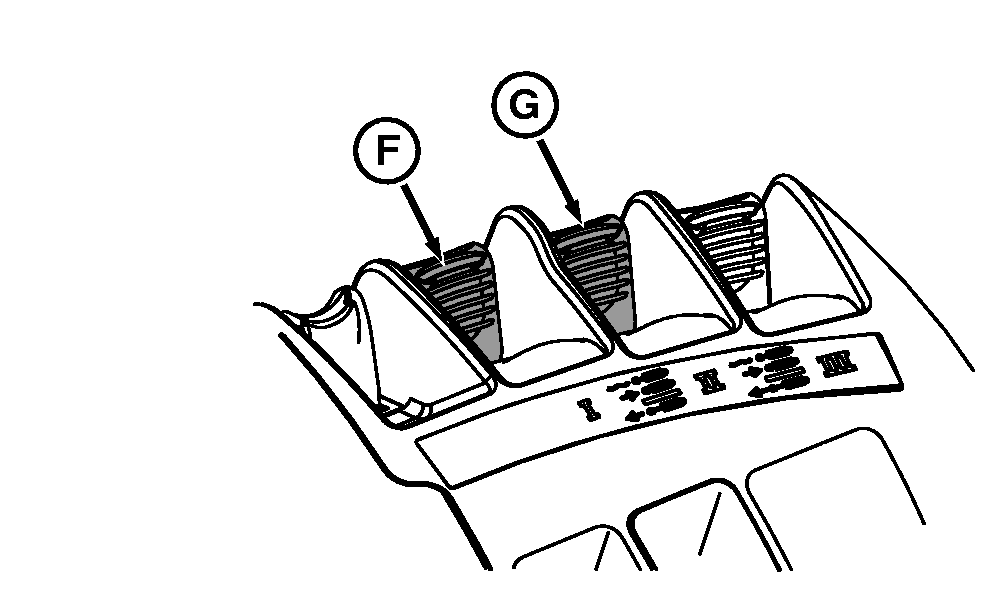

F-SCV I Lever
G-SCV II Lever

RW29387,0000263 -19-20SEP07-1/1
