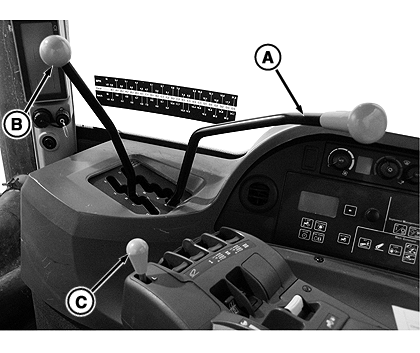

Both the range-shift lever (A) and the gearshift lever (B) control synchronized shifts with the 24-speed POWRSYNC transmission. Move the hi-lo shift lever (C) forward or back within speeds 1, 2, 3 and R, without using the clutch, to double the speeds available.

Shift between gears 1 and R, 1 and 2, 2 and 3, and ranges A and B, B and C, C and D, with the clutch pedal depressed.

Depress clutch pedal and stop tractor to shift into PARK position.

Move range-shift lever (A) before moving gearshift lever (B), when shifting both the gear and range levers. Move the lever toward the desired position with a steady force until the shift is completed.

RW29387,0000267 -19-08SEP08-1/1
