Using Field Cruise™ and Foot Decelerator

Field Cruise -Rotate Command dial (A) to bring Field Cruise screen (B) to bottom-half display.

• Press SELECT switch (C), rotate Command dial to raise or lower engine rpm setting as needed, and press SELECT switch again.
• Engine speed can be adjusted from 1100-2200 rpm. Changes to rpm setting take place immediately.
• When Field Cruise is not in use, OFF is displayed instead of the rpm speed.
• Field Cruise utilizes a constant speed governor curve, providing instant response to varying loads.
• Use of Field Cruise will remove availability of power bulge and as such is not recommended for heavy tillage applications.
• Limiting engine speed in light load situations may improve fuel economy.

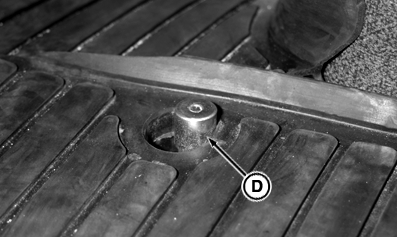

Foot Decelerator -Push button (D) to lower engine rpm until released. Speed resumes when released.

Field Cruise is a trademark of Deere & Company

RW29387,000026C -19-09MAR09-1/2

Setting Decelerator

Press Settings Switch (A) to view menu items on Display (D). Rotate Command Dial (B) to highlight Decel Switch and press Select Switch (C).

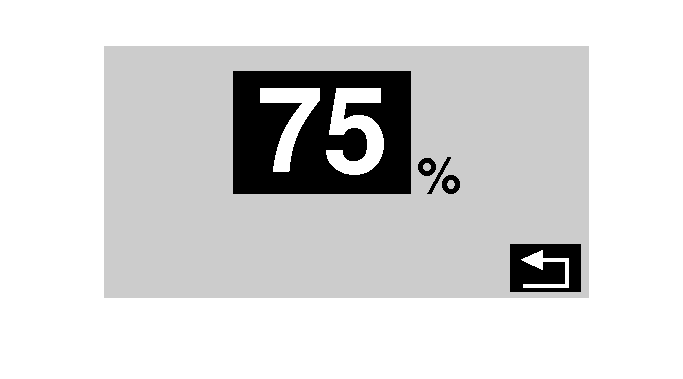

Decelerator is adjustable from 50 to 95 percent of maximum engine (throttle) speed by rotating Command Dial and pressing Select Switch to save setting.

RW29387,000026C -19-09MAR09-2/2
