Adjusting Selective Control Valve Flow Rate

causym CAUTION: Excessive operating speed can cause damage or injury. Full extension or retraction of cylinder should take at least 2 seconds.

Adjust rate of operation for each job. Rate should be slow enough to be safe, yet fast enough to be practical.

Change flow setting as follows:

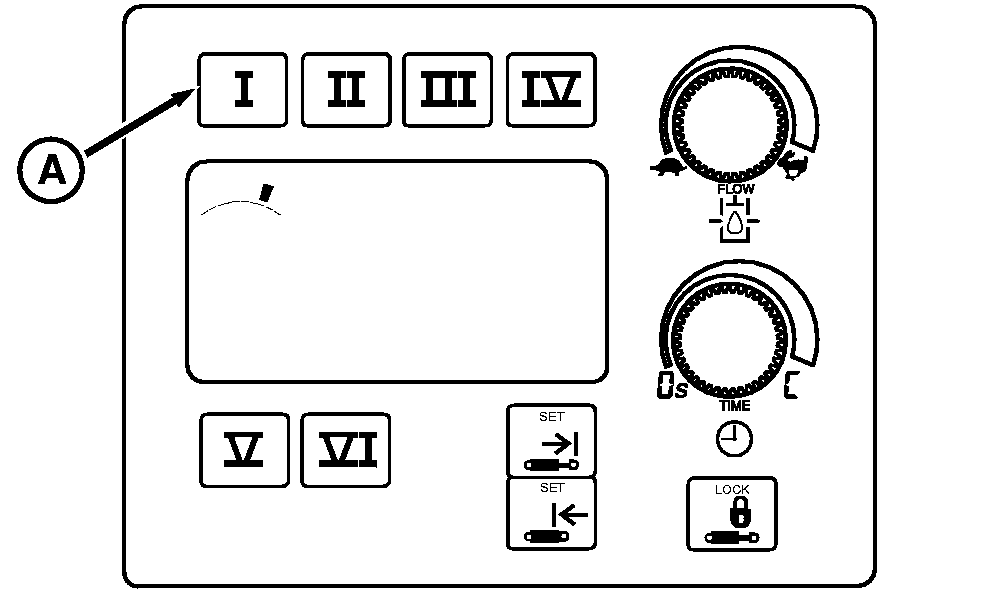

1. Press selected SCV switch (A). Display below touch switch shows previous rate of flow.

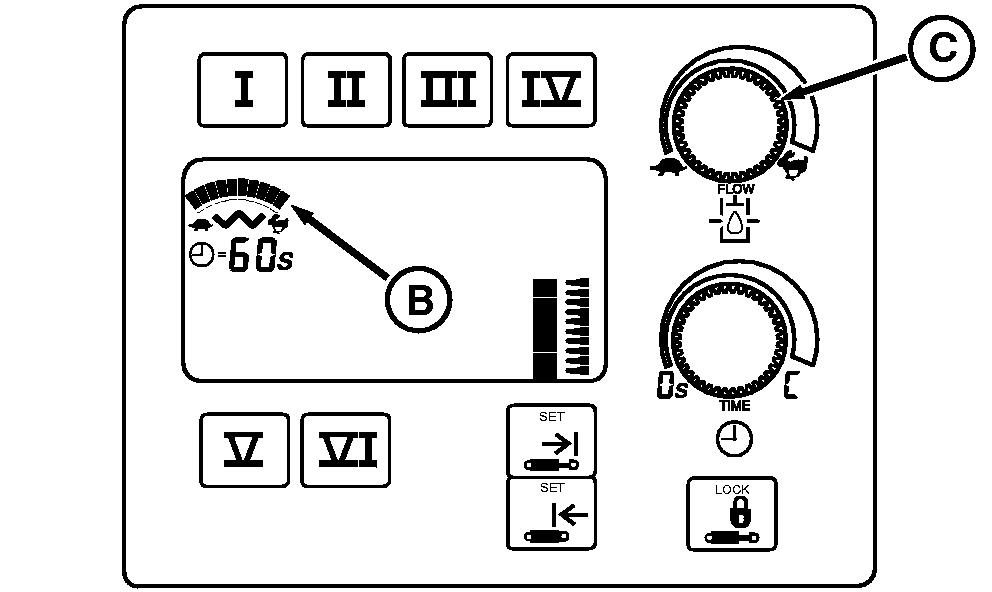

2. Turn flow rate knob (C) clockwise (rabbit) to increase flow or counterclockwise (turtle) to decrease flow. Flow setting is shown on bar graph display (B) when adjustments are made.

NOTE: SCV can be operated to observe flow rate while in adjustment mode. Reduced cylinder cycle times and/or a reduction in motor speed may result if total flow demand exceeds available pump flow.

SCV FLOW OUTPUT (APPROXIMATE)

  Flow
SCV Flow Settings L/min gpm

0.1 a - -
1.0 3.6 1.0
2.0 7.2 1.9
3.0 10.2 2.7
4.0 14.4 3.8
5.0 19.2 5.0
6.0 24.0 6.4
7.0 31.2 8.2
8.0 39.6 10.5
9.0 65.4 17.2
10.0 114 30.0

a0.1 = Minimum Flow Setting


RXA0085795
RXA0085796


A-SCV Switch
B-Bar Graph Display
C-Flow Rate Knob

RW29387,000027F -19-06DEC05-1/1
