OMAR283034: 9230, 9330, 9430, 9530 and 9630 Tractors, Block File: RW29387_000028F_19

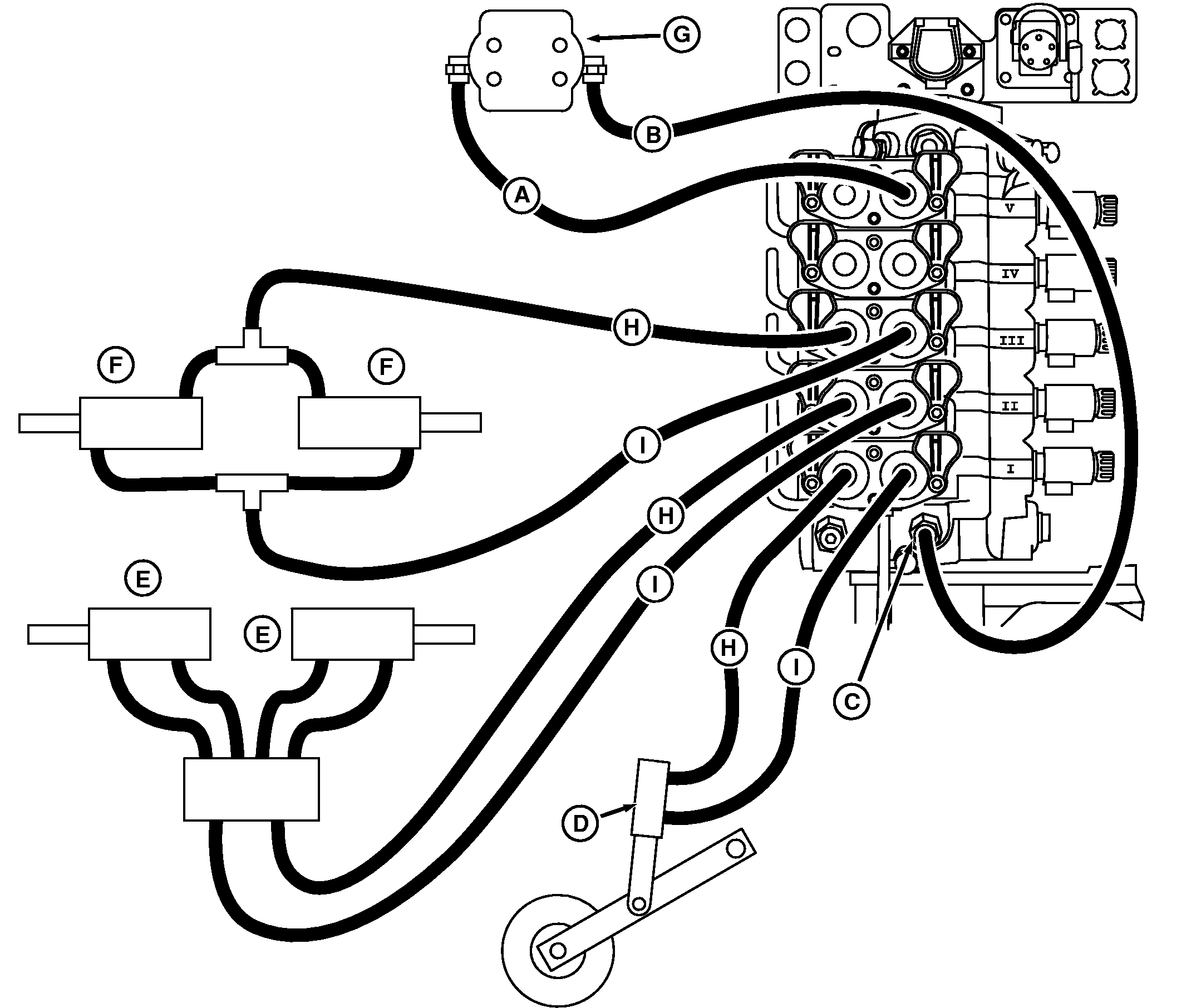

Implement Connection Example 3-Closed Center Valve, Pump at High Pressure-Less Hitch-Standard Hydraulics

A-Pressure Line
B-Return Line
C-Power Beyond Return coupler

D-Raise/Lower cylinder
E-Markers

F-Fold
G-Hydraulic Motor

H-Extend Coupler Line
I-Retract Coupler Line

NOTE: Not recommended for high flow scraper hydraulics.

In this application motor (G) receives pressure oil from the retract port on SCV. Return oil is routed to power beyond return port. When the motor is shut off, the

SCV lever is moved to float position to allow motor to coast to a stop. Moving lever to neutral can cause motor to stop abruptly and may damage seals. Since return oil is routed to power beyond return port, no special hose tip is required.

RW29387,000028F -19-05NOV07-1/1
