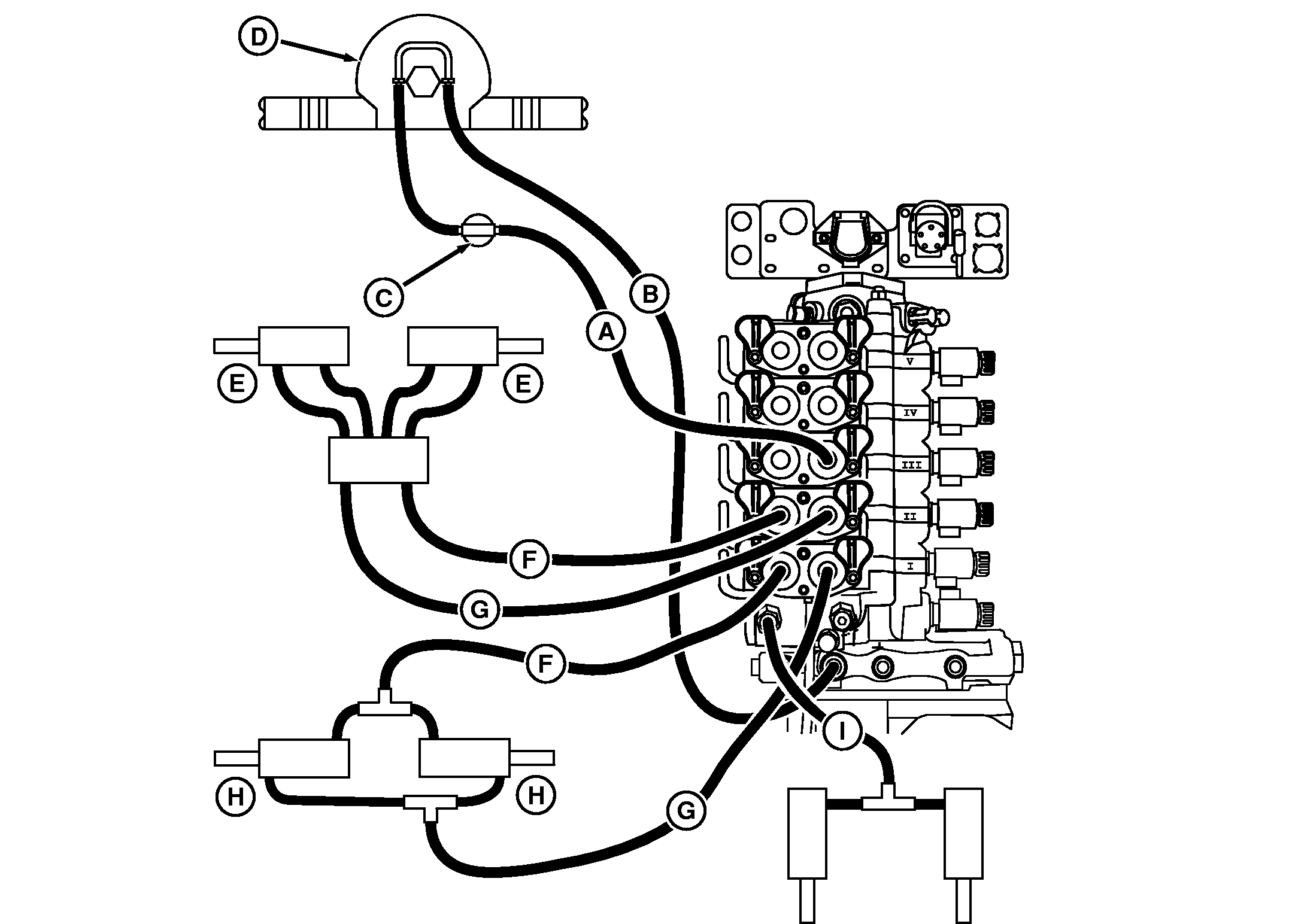

Implement Connection Example 5-Planter with Vacuum Motor and Return Line to Motor Return-With Hitch-With Lift Assist-Standard Hydraulics

A-Pressure Line
B-Return Line
C-Flow Control Valve (Wide Open)

D-Vacuum Motor
E-Fold

F-Extend Coupler Line
G-Retract Coupler Line

H-Markers
I-Lift Assist

NOTE: Not recommended for high flow scraper hydraulics.

In this application vacuum motor (D) receives pressure oil from the retract port of SCV. Return oil is routed to power beyond return port. If return hose is equipped with special return hose tip, it can be connected directly to left-hand side of coupler three. When the motor is shut off, the SCV lever is moved to float position to allow motor to coast to a stop. Moving lever

to neutral will cause motor to stop abruptly and may damage seals.

Control valve (C) is wide open and flow is controlled by tractor control panel. If valve is used to control oil flow, pump will operate at maximum pressure which may cause overheating of hydraulic oil if at the same time outside air temperature is high.

Lift assist is controlled by hitch lever.
