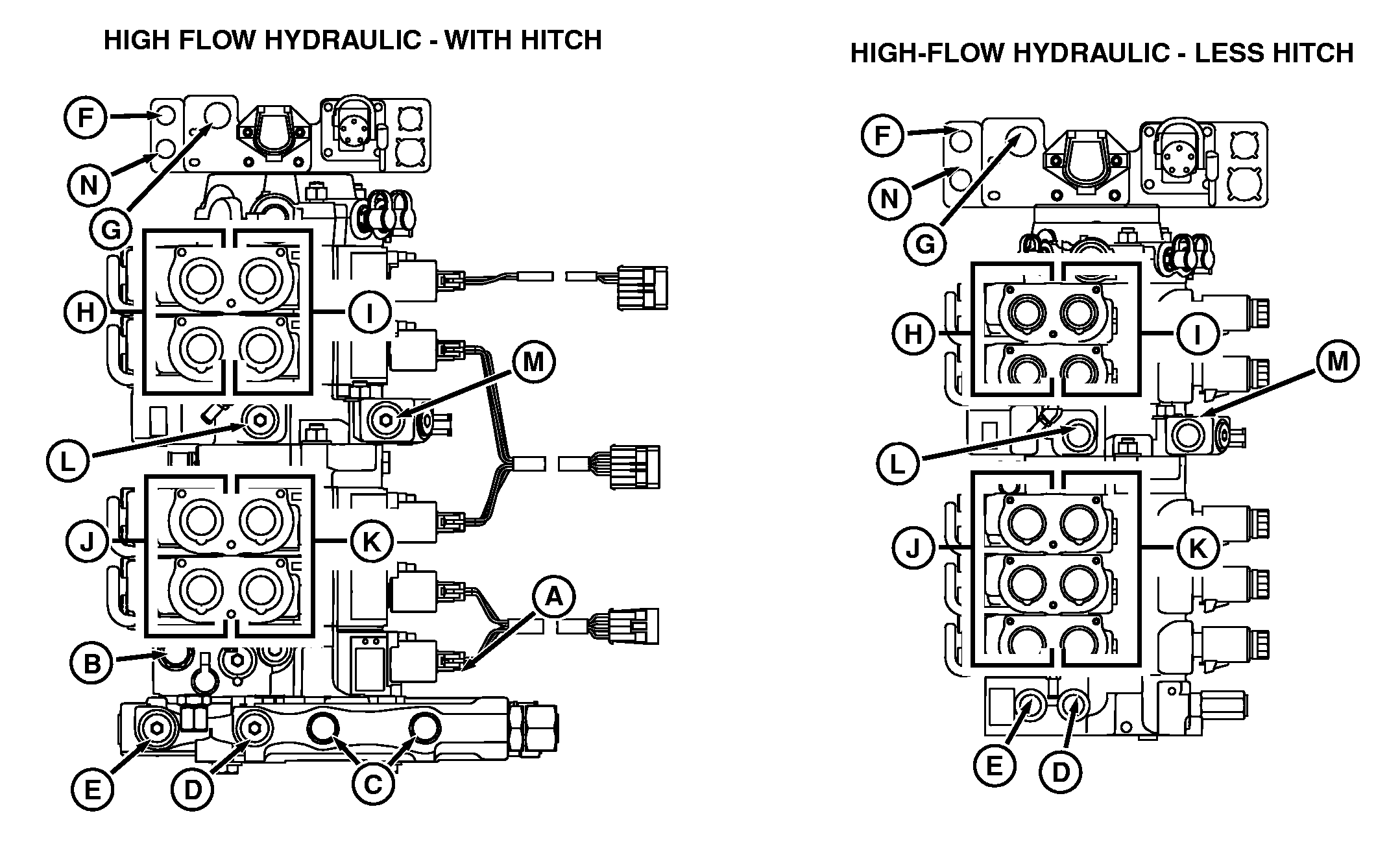

A-Hitch Valve
B-Hitch Valve Pressure Port
C-Hitch Return Ports
D-Power-Beyond Return Port 75cc Pump
|
E-Power-Beyond Pressure Port 75cc Pump
F-Power-Beyond Load Sense Coupler (Secondary Pump)
G-Motor Seal Drain Port
|
H-Extend Ports 45cc Pump
I-Retract Ports 45cc Pump
J-Extend Ports 75cc Pump
K-Retract Ports 75cc Pump
L-Power-Beyond Pressure Port 45cc Pump
|
M-Power-Beyond Return Port 45cc Pump
N-Power Beyond Load Sense Coupler (Primary Pump)
|
