Motor Seal Drain Kit-If Equipped

The motor seal drain protects motor and shaft seals by allowing motor crankcase oil to return directly to the hydraulic reservoir at low (sump) pressure.

A filter is required on this circuit in the event a motor failure occurs which could send debris through the seal drain line to the reservoir. A unique coupling system is used to prevent incorrect hose connection.

NOTE: The motor seal drain line can handle up to 38 L/min (10 gpm).

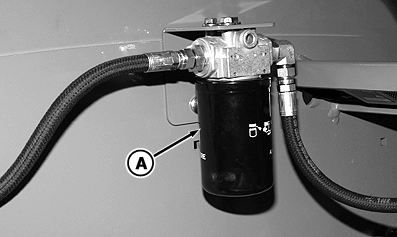

A-Motor Seal Drain Filter
