Adjusting Drawbar Side-to-Side Movement

1. Remove drawbar locking bolts (A).

2. Slide drawbar to desired position.

3. Install a locking bolt against each side of drawbar.

Drawbar Locking Bolts - Specification

Bolt -Torque 435 N·m (322 lb-ft)

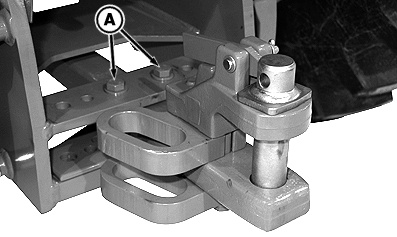

A-Locking Bolts

RXA0090658

RW29387,000029E -19-08SEP08-1/1
