Installing Clevis Assembly-Category 4 Drawbar

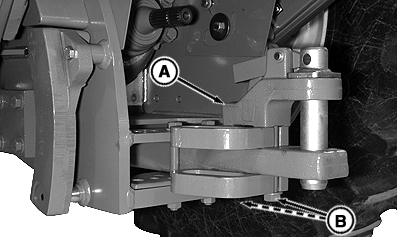

Clevis assembly (A) must be attached only to the top of the drawbar. Tighten two cap screws (B).

Clevis Cap Screws - Specification

Cap Screw -Torque 750 N·m (553 lb-ft)


A-Clevis Assembly
B-Cap Screws

RXA0090661

RW29387,000029F -19-08SEP08-1/1
