Using PTO Master Shield-If Equipped

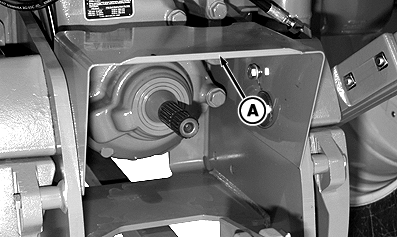

causym CAUTION: Avoid possible injury. Tractor master shield (A) should be in place at all times except for special applications as directed in the implement operator's manual. Do not use shield as a step.

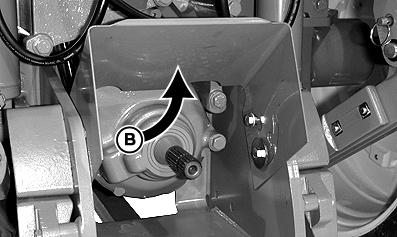

Master shield can be tipped up (B) to provide clearance while connecting PTO shaft. DO NOT operate PTO with shield in the fully raised position.

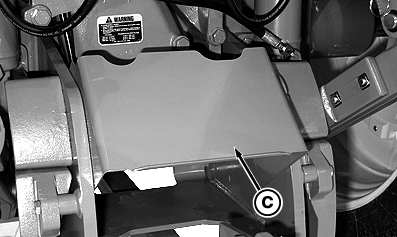

Master shield (C) can be lowered to improve drawbar visibility, when drawbar is being used without PTO.


A-PTO Shield
B-Raised Position
C-Lowered Position

RXA0090665
RXA0090669
RXA0090667

RW29387,00002A2 -19-30AUG06-1/1
