Attaching Implement to Quick Coupler

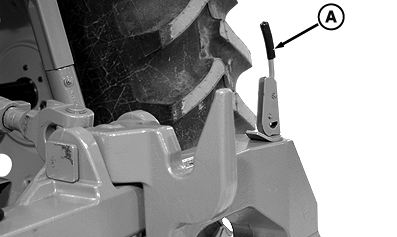

A-Coupler Latch Handle Up

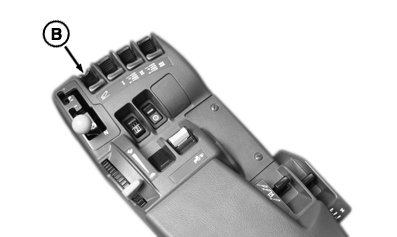

B-Hitch Control Switch

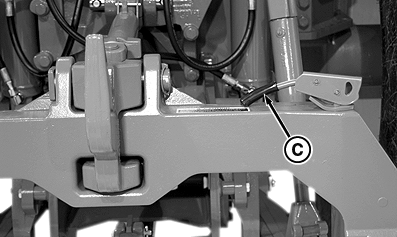

C-Coupler Latch Handle Down

CAUTION: To avoid bodily injury or machine damage:

• Put transmission in PARK position and check the full range of hitch for interference, binding, or PTO separation whenever an implement is attached.

• Make sure implement is correctly attached. Incorrect attachment can allow implement to be pulled over the tractor wheel and onto the operator station.

• Do not stand between tractor and implement.

2. Lower hitch switch (B) until quick coupler hooks are lower than implement hitch pins.

3. Back up tractor to implement.

4. Raise hitch enough to engage implement pins in hooks.

5. Push coupler latch handles down (C) to lock implement to quick coupler.

6. Connect hydraulic hoses and electrical connections.

7. Slowly pull hitch control lever to raise implement. Lower implement to ground and adjust upper height limit control if necessary.
