Adjusting Implement Level

1. Adjust center link to level implement front-to-rear.

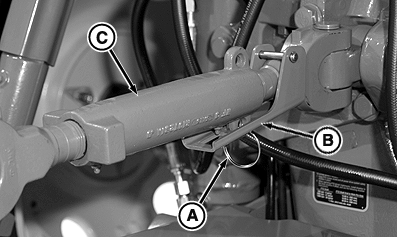

2. Remove lock pin (A). Disengage handle (B) and rotate center portion (C) to lengthen or shorten center link.

Center Link - Specification

Adjustment -Length 747-868 mm (29.5-34.3 in.)

3. Push handle down and install lock pin to hold center link in position. Measure between centers of attaching pins.

RXA0090014


A-Lock Pin
B-Handle
C-Center Link Body

RW29387,00002B3 -19-27JUL06-1/2

4. Adjust either lift link to level implement side-to-side. Raise sleeve (A) above lift link lock (B). Use a wrench to rotate center portion of lift link (C).

5. Measure between centers of attaching pins.

Lift Link - Specification

Adjustment -Length 1030-1150 mm (40.5-45.3 in.)


A-Sleeve
B-Lift Link Lock
C-Lift Link

RXA0090029
RXA0090031

RW29387,00002B3 -19-27JUL06-2/2
