Attaching Implement and Control System

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result.

IMPORTANT: Be sure to correctly connect remote hydraulic hoses to couplers. If hose connections are reversed, machine will not respond to system controls. Extend hose always goes in coupler left-hand port . Retract hose always goes in coupler right-hand port .

  • Extend = Left Side

  • Retract = Right Side

NOTE: Hose identification kits are available from your John Deere Dealer.

1. Identify control hoses (A).

2. Back tractor into position and attach hitch link to drawbar. Be sure hitch pin is locked into position.

IMPORTANT: Always shut engine off before connecting/disconnecting implement position sensor. Connect/disconnect with engine running will cause system faults. Shut engine off then restart to restore correct function.

3. Stop tractor engine.

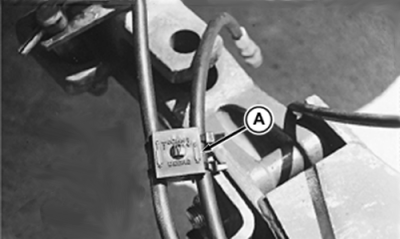

A-Hose Identification

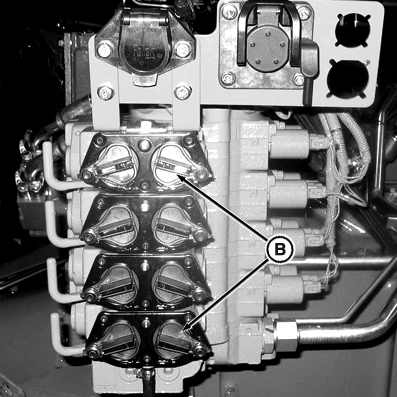

B-SCV Couplers

X9811
RW26035
RXA0096541

RW29387,00002B7 -19-31OCT07-1/3

IMPORTANT: Be sure to correctly connect depth control hoses to couplers. If hose connections are reversed, machine will not respond to system controls.

4. Push implement control hoses into SCV I and/or III couplers (B) as required. Extend hose always goes in left coupler.

RW29387,00002B7 -19-31OCT07-2/3

NOTE: When installing hydraulic hoses under pressure, follow procedure listed or hose may not be seated.

5. Push extend hose (A) forward until contacting coupler.

6. Pull back on lever (B) while continuing to push forward on hose. This will allow coupler poppet to retract.

7. With hose fully inserted into coupler, release lever allowing it to go back to the center position. This will lock hose in place.

8. Push retract hose (C) forward until contacting coupler.

9. Push forward on lever (D) while continuing to push forward on hose. This will allow coupler poppet to retract.

10. With hose fully inserted into coupler, release lever allowing it to go back to the center position. This will lock hose in place.

11. Attach implement wiring harness to tractor implement connector.

RXA0090078

Install Extend Hose

RXA0090080

Install Retract Hose


A-Extend Hose
B-Lever
C-Retract Hose
D-Lever

RW29387,00002B7 -19-31OCT07-3/3
