Installing QUIK-TATCH Frame Weights

NOTE: Rear frame weights should not be installed on tractors pulling non dolly wheel scrapers.

Up to 20 QUIK-TATCH weights can be installed on rear frame of tractor.

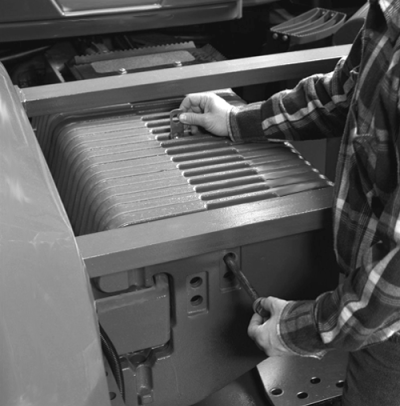

When required, install QUIK-TATCH weights, balanced on each side of center (A). The first two weights must be installed as a pair.

To hold six weights or fewer in position, insert retaining bolts (B) through holes and secure with a nut. Tighten to 230 N·m (170 lb-ft).

When eight or more weights are installed, insert retainers between weights, one with threaded hole upward and the other with threaded hole downward. Tighten bolts to 230 N·m (170 lb-ft).

A-Center
B-Retaining Bolts

RW29387,00002C9 -19-08SEP08-1/1
