Using Safety Chains

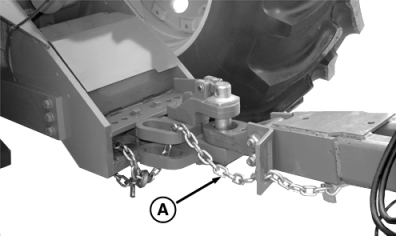

Attach and route the safety chain (A) to the drawbar support.

CAUTION: Avoid possible accident and injury by using a safety chain on drawn equipment. Use a safety chain with a strength rating equal to or greater than the gross weight of equipment. Provide only enough slack in the chain to permit turning.

IMPORTANT: DO NOT use safety chain for towing or possible damage to tractor, implement, and drawbar may result. Safety chain is provided only for transport.

A-Safety Chain

RW29387,00002E3 -19-06DEC05-1/1
