Transporting on Carrier

The best method of transporting a disabled tractor is to haul it on a flatbed carrier.

causym CAUTION: Stop engine and remove key before working in hinge area.

IMPORTANT: Install hinge lock, originally equipped with tractor, on hinge cylinders before transporting tractor.

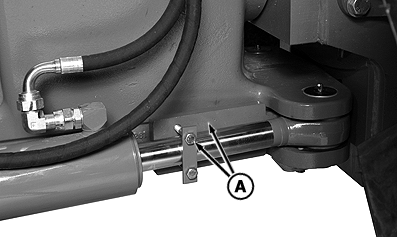

Steer tractor straight ahead to install hinge lock (A).

Chain tractor to carrier securely. Drive slowly.

IMPORTANT: Be sure hinge lock is removed from hinge area before operating tractor.

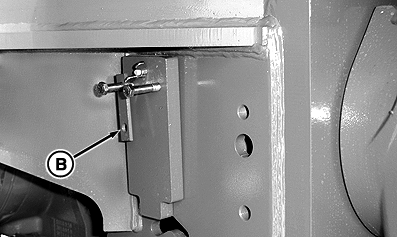

Store hinge lock on tractor as shown (B).


A-Hinge Lock
B-Hinge Lock Storage

RW13091
RXA0090466
RXA0090464

RW29387,00002E4 -19-09OCT07-1/2

"T" Hook Locations

causym CAUTION: To avoid accident or injury, securely chain the tractor to carrier. Drive carefully.

IMPORTANT: Attach tie downs only to frame "T" hook slots and drawbar support when securing tractor on a carrier.

A disabled tractor should be hauled on a flat bed carrier.

1. Engage PARK position.

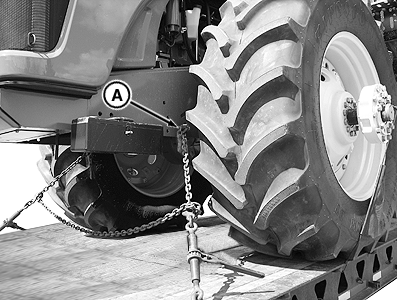

2. Attach chain using left and right side frame "T" hook slots (A) and tension chains forward and down to trailer frame.

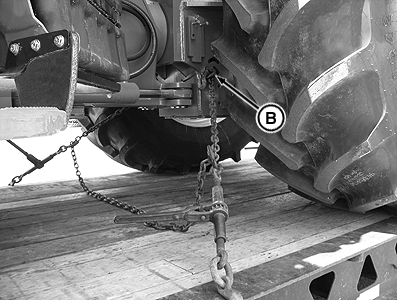

3. Attach chain "T" hooks using left and right side frame "T" hook slots (B) and tension chains forward and down to trailer frame.

NOTE: Use a rubber or protective material to prevent paint damage to drawbar support.

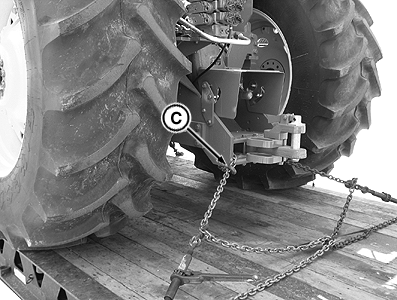

4. Attach chains to each side of rear drawbar support (C) to secure tractor to carrier.
5. After traveling a short distance, check load shift and tighten chains if needed.


A-"T" Hook Slot-Left Side Frame
B-"T" Hook Slot- Rear Frame
C-Drawbar Support Tie Down

RXA0096136

"T" Hook Slot-Left Side

RXA0096138

"T" Hook Slot-Rear Frame

RXA0096140

Drawbar Support
