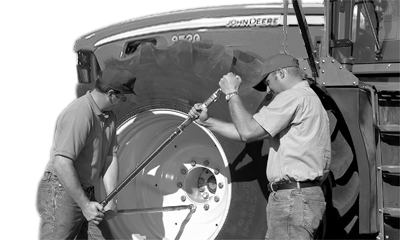

Checking Wheel and Weight Bolts

SERVICE INTERVAL - DAILY, 10 HOURS, 250 HOURS



IMPORTANT: If tractor is operated with loose wheel sleeve for 4-5 hours, it is necessary to replace sleeves.

Retighten wheel and weight bolts after working 3 HOURS , 10 HOURS and DAILY during the first week of operation.

Check and torque all wheel and weight bolts on a regular or 250 Hour interval. See Wheels, Tires and Treads Section for bolt tightening information.

RXA0090161

RW29387,000036F -19-01AUG06-1/1
