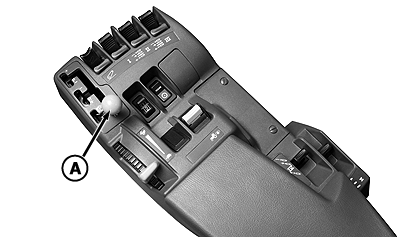

Fully depress clutch and brake pedals. Move gear shift lever (A) from PARK position to a forward gear. Attempt to start engine. Starter should NOT engage.

If starter engages, neutral start system should be repaired by your John Deere Dealer immediately . Repeat this step with transmission in a reverse gear.

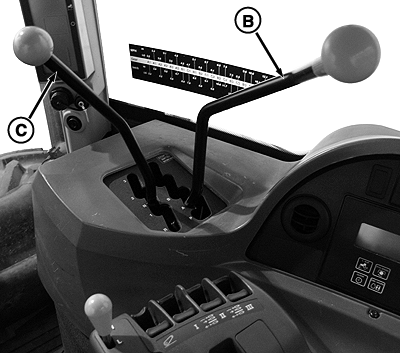

Fully depress clutch and brake pedals. Move range selector lever (B) into A-range and the gear selector lever (C) into 1 forward (24-Speed POWRSYNC). Attempt to start engine. Starter should NOT engage.

If starter engages, neutral start system should be repaired by your John Deere Dealer immediately . Repeat this step with transmission in a reverse gear.

RW29387,0000370 -19-03SEP08-1/1
