Internal Park BrakeIMPORTANT: Park brake on Powershift transmission equipped tractors is spring applied and hydraulically released. If engine will not run or hydraulic system fails, park brake will be applied. Tractor cannot be towed with park brake applied. See your John Deere dealer to release park brake on a disabled tractor.

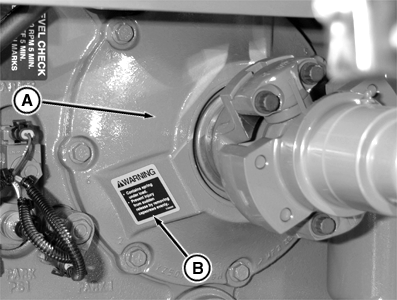

9030 tractors have an internal park brake (A). No maintenance is required. Park brake should be repaired or replaced by your John Deere Dealer if found defective. |
|
CAUTION:
Label (B) states, internal park brake contains spring under load. Prevent injury from sudden release by removing cap screws evenly.
RW29387,0000373 -19-06NOV07-1/1 |
